Today’s Deals2025 Kellys

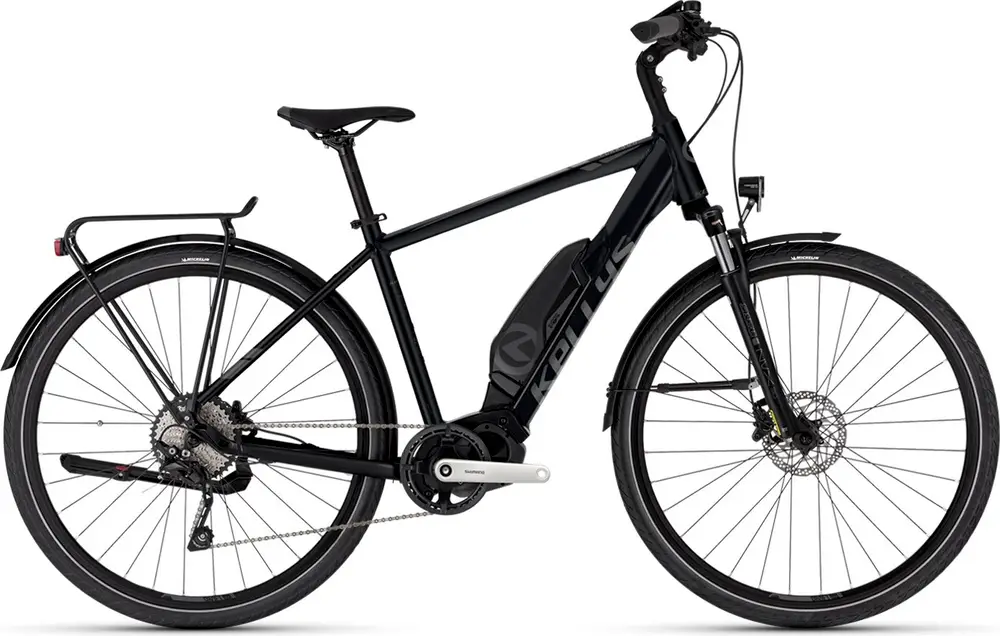

E-CARSON 10, SH 630 Wh
A 700c aluminum frame commuter e-bike with mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€1,999($2,315)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 80mm |
| Fork | Suntour NVX |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 9 |
| Groupset | CUES |
| Motor | Shimano 250W 40Nm mid-drive |
| Battery | Shimano 630Wh |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full E-CARSON model range
View Comparison| Frame | KELLYS e-FRAME Tour Profile Aluminium alloy, semi-integrated battery, tapered HT, integrated kickstand mount |
|---|---|
| Fork | SR SUNTOUR NVX 30 NLO DS (29), 80 mm, coil spring Travel: 80mm Spring Type: Coil |
| Stem | PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 105 mm |
| Handlebar | KALLOY RiseBar - diam 31.8 mm / width 640 mm |
| Saddle | SELLE ROYAL Vivo |
| Seatpost | KLS Active - diam 30.9 mm / length 350 mm Type: Rigid |
| Pedals | plastic |
| Grips | KLS Wave 2Density ergonomic |
| Rear Derailleur | SHIMANO Cues U4000 or SHIMANO Altus M2000 (direct mount) |
|---|---|
| Crank | SHIMANO E5000 (38T) - length 170 mm |
| Shifters | SHIMANO Cues SL-U4000-9 or SHIMANO Altus SL-M2000 Rapidfire Plus |
| Cassette | SHIMANO Linkglide CS-LG300-9 (11-41T) or SHIMANO CS-HG201-9 (11-36T) |
| Chain | SHIMANO Linkglide CN-LG500 |
| Brakes | SHIMANO MT200 Hydraulic Disc Type: Shimano Hydraulic Disc |
| Brake Levers | SHIMANO BL-MT200 |
| Rims | KLS Draft Disc 622x21 (32 holes) |
|---|---|
| Spokes | stainless steel black |
| Front Hub | SHIMANO TX505 Disc Center Lock (32 holes) |
| Rear Hub | SHIMANO TX505 Disc Center Lock (32 holes) |
| Tires | IMPAC Bigpac 55-622 (28x2.15) TwinSkin or KENDA Kwick Nine (29x2.0) - ReflectiveLine |
| Disc Rotors | 160 mm front / 160 mm rear |
| Motor | SHIMANO STEPS E5000, 36 V |
|---|---|
| Battery | SHIMANO BT-E8016, 630 Wh / capacity 17.5 Ah |
| Display | SHIMANO SC-E5000 cycle computer with assist switch |
| Lights | Front: AXA Compactline 35, Rear: TRELOCK Duo Flat |
|---|---|
| Fenders | plast |
First added February 9
Last updated April 25
Not listed for 43 days
