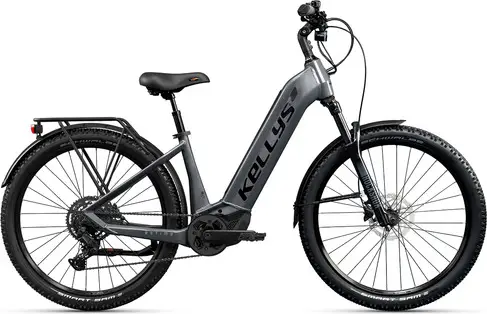

2024 Kellys
ESTIMA X40 P 725Wh

An aluminum frame touring e-bike with mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

€3,699($4,239)

Where to Buy

Similar Bikes

Top Comparison

Insights

Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

ESTIMA X40 P 725Wh

32 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry

Specs

Build

Frame	KELLYS ESTIMA X-series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT / Made in EU
Fork	ROCK SHOX 35 Silver TK (27.5") Boost, 100 mm, Solo Air / TurnKey / Maxle Stealth 15 mm thru axle Spring Type: Air
Stem	PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 85 mm
Handlebar	KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
Saddle	SELLE ROYAL Freedom Royalgel
Seatpost	KALLOY suspension - diam 30.9 mm / length 300 mm (S), 350 mm (M) Type: Suspension
Pedals	plastic
Grips	KLS Wave 2Density ergonomic

Groupset

Rear Derailleur	SHIMANO Cues U4000 (direct mount)
Crank	MIRANDA Delta (36T) - length 170 mm
Shifters	SHIMANO Cues SL-U4000-9 Rapidfire Plus
Cassette	SHIMANO Linkglide CS-LG300-9 (11-46T)
Chain	SHIMANO Linkglide CN-LG500 (122 links)
Brakes	SHIMANO MT200 hydraulic disc Type: Shimano Hydraulic Disc
Brake Levers	SHIMANO BL-MT200

Wheels

Rims	KLS Valor 3 Disc 584x30 (32 holes)
Spokes	stainless steel black
Front Hub	SHIMANO MT400-B Disc Center Lock (32 holes)
Rear Hub	SHIMANO MT400-B Disc Center Lock (32 holes)
Tires	SCHWALBE Smart Sam Active 60-584 (27.5"x2.35) K-Guard, ReflectiveLine
Disc Rotors	180 mm front / 180 mm rear

Electric Components

Motor	PANASONIC GX Ultimate, 95 Nm, 36 V
Battery	KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
Display	PANASONIC Bluetooth® 5.0 navigation Side Color Display

Accessories

Lights	Front: TRELOCK Veo 50, Rear: TRELOCK Duo Flat
Fenders	plastic
