2024 Kellys
E-CARSON 90 P ATB 725 Wh

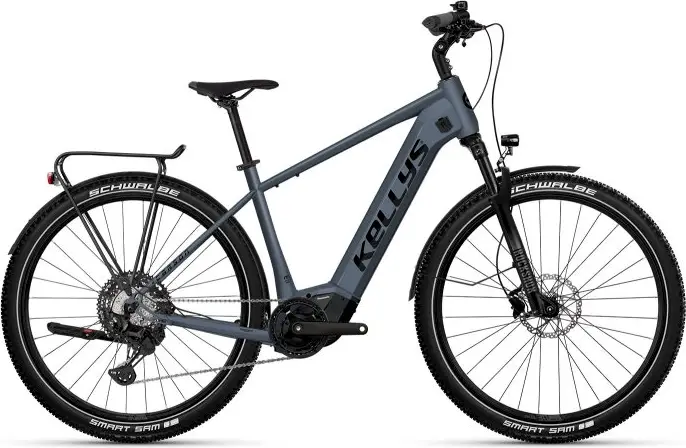

A 29″ aluminum frame commuter e-bike with high-end components and shimano deore hydraulic disc brakes.
Compare the full range

Manufacturer Price

€3,999($4,651)

Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	RockShox Recon Gold RL
Wheels	29″ Aluminum
Groupset	XT
Motor	Panasonic 95Nm mid-drive
Battery	725Wh
Brakes	Shimano Deore Hydraulic Disc

Where to Buy

Similar Bikes

Top Comparison

Insights

Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

E-CARSON 90 P ATB 725 Wh

31 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full E-CARSON model range

Geometry

Specs

Build

Frame	KELLYS E-CARSON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT
Fork	ROCK SHOX Recon GOLD RL (29") Boost, 100 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle Travel: 100mm Spring Type: Air
Stem	PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 105 mm
Handlebar	KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
Saddle	SELLE ROYAL Vivo
Seatpost	KLS Active - diam 30.9 mm / length 350 mm Type: Rigid
Pedals	plastic
Grips	KLS Wave 2Density ergonomic

Groupset

Rear Derailleur	SHIMANO Deore XT Linkglide M8130 (direct mount)
Crank	MIRANDA Delta (36T) - length 170 mm
Shifters	SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
Cassette	SHIMANO Linkglide SC-LG600-11 (11-50T)
Chain	SHIMANO Linkglide CN-LG500 (122 links)
Brakes	SHIMANO MT410 hydraulic disc Type: Shimano Deore Hydraulic Disc
Brake Levers	SHIMANO BL-MT4100

Wheels

Rims	KLS Valor 3 Disc 622x30 (32 holes)
Spokes	stainless steel black
Front Hub	SHIMANO MT400-B / Alivio M4050 Disc Center Lock (32 holes)
Rear Hub	SHIMANO MT400-B / Alivio M4050 Disc Center Lock (32 holes)
Tires	SCHWALBE Smart Sam Performance 57-622 (29"x2.25) ADDIX, ReflectiveLine
Disc Rotors	180 mm front / 180 mm rear

Electric Components

Motor	PANASONIC GX Ultimate, 95 Nm, 36 V
Battery	KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
Display	PANASONIC Bluetooth® 5.0 navigation Side Color Display

Accessories

Lights	Front: TRELOCK Veo 50, Rear: TRELOCK Duo Flat
Fenders	aluminium
