Today’s Deals2023 Kellys

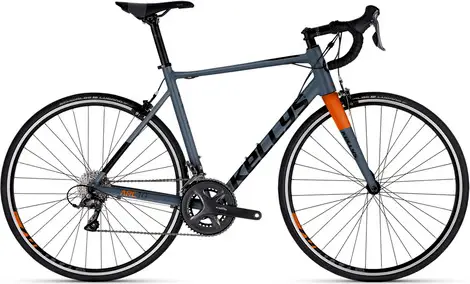

ARC 10
An aluminum frame race bike with mid-range components and tektro rim brakes.
Compare the full range
Manufacturer Price
€1,049($1,220)| Frame | Aluminum |
|---|---|
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 8 |
| Groupset | Claris |
| Brakes | Tektro Rim |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full ARC model range
View Comparison5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | KELLYS Endurance Concept, Aluminium alloy / tapered HT, internal routing BB Standard: BSA, 68mm, Threaded |
|---|---|
| Fork | KELLYS Carbon, 1.5 tapered steerer |
| Bottom Bracket | SHIMANO BB-RS500 |
| Stem | KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 70 mm (S), 90 mm (M), 110 mm (L) |
| Handlebar | KLS Expert Road - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L) |
| Saddle | WTB Volt |
| Seatpost | KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L) Type: Rigid |
| Grips | KLS bar tape |
| Rear Derailleur | SHIMANO Claris R2000 (direct mount) |
|---|---|
| Front Derailleur | SHIMANO Claris R2000 (braze on) |
| Crank | SHIMANO Claris R2000 (50x34T) - length 170 mm (S - M), 175 mm (L) |
| Shifters | SHIMANO Claris ST-R2000 Dual Control |
| Cassette | SHIMANO CS-HG50-8 (11-32T) |
| Chain | KMC Z8 (108 links) |
| Brakes | TEKTRO Type: Tektro Rim |
| Brake Levers | SHIMANO Claris ST-R2000 Dual Control |
| Rims | KELLYS Spark 622x15 (32 holes / eyelets) |
|---|---|
| Spokes | stainless steel black |
| Front Hub | SHIMANO Claris 2400 (32 holes) |
| Rear Hub | SHIMANO Claris 2400 (32 holes) |
| Tires | SCHWALBE Lugano 25-622 (700x25C) K-Guard, Silica |
