2021 Kellys
TAYEN R50 29" 720Wh

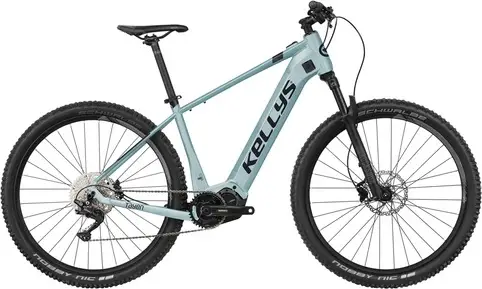

A 29″ aluminum frame hardtail trail e-bike with upper mid-range components.
Compare the full range

Where to Buy

Similar Bikes

Top Comparison

Insights

Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

TAYEN R50 29" 720Wh

26 mph

Similar Bikes

Highest gear

(descending)

Geometry

Specs

Build

Frame	KELLYS TAYEN R series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT, 12x148mm Boost thru axle / Made in EU
Fork	ROCK SHOX Recon Silver RL (29) Boost, 120mm, Solo Air / Motion Control / Maxle Stealth 15mm thru axle Travel: 120mm Spring Type: Air
Stem	KLS Alm/En 50 - diam 28.6mm / bar bore 31.8mm / length 45mm
Handlebar	KLS Active RiseBar - diam 31.8mm / rise 18mm / width 700mm
Saddle	KLS Sentinel 2
Seatpost	KLS Active - diam 30.9mm / length 350mm Type: Rigid
Pedals	plastic
Grips	KLS Poison OneLockon

Groupset

Rear Derailleur	SHIMANO Deore M5120 (direct mount)
Crank	SHIMANO E6100 (34T) - length 170mm
Shifters	SHIMANO Deore SL-M4100-R Rapidfire Plus (I-Spec EV)
Cassette	SHIMANO CS-M4100-10 (11-46T)
Chain	KMC e10T (116 links)
Brakes	SHIMANO MT200 Hydraulic Disc Type: Shimano Hydraulic Disc
Brake Levers	SHIMANO BL-MT200

Wheels

Rims	KLS Valor 3 Disc 622x30 (32 holes)
Spokes	stainless steel black
Front Hub	SHIMANO MT400-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rear Hub	SHIMANO MT400-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Tires	SCHWALBE Nobby Nic Performance 60-622 (29x2.35) ADDIX
Disc Rotors	180mm front / 180mm rear

Electric Components

Motor	SHIMANO STEPS E7000, 36V
Battery	KELLYS Re-Charge V10 Li-ion internal removable 720Wh / capacity 20Ah, powered by BMZ
Display	SHIMANO SC-E5000 cycle computer with assist switch

Rider Notes
