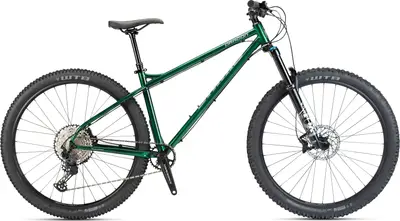

2021 Jamis

DRAGON | 29

A 29″ steel frame hardtail trail bike with upper mid-range components.
Compare the full range

MSRP$2,099
Weight32.0 lbs
FrameSteel
SuspensionHardtail, 140mm
ForkFox Rhythm Float 34
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetSLX, Race Face
BrakesHydraulic Disc
SeatpostDropper
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
DRAGON | 29
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

DRAGON | 29

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Reynolds 520 steel, 44mm head tube, 31.6 I.D. seat tube, internal dropper post routing, ISCG05, 12x148mm thru-axle dropouts

BB StandardBSA, 73mm, Threaded

Fork

Fox 34 Rhythm Series Float 29” w/ sweep adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 140mm travel

Travel140mm

Spring TypeAir

Bottom Bracket

Race Face BSA

Headset

FSA Orbit, Alloy cups

Stem

Race Face Ride, 50mm

Handlebar

Race Face Ride, 35 x 760mm

Saddle

WTB Volt

Seatpost

KS Rage Dropper, Southpaw remote

TypeDropper

Pedals

N/A

Grips

Jamis Lock-On

Groupset
Rear Derailleur

Shimano SLX, 12-speed

Crank

Race Face Ride, 32T

Shifters

Shimano SLX, 1x12-speed

Cassette

Shimano M7100, 12-speed, 10-51T

Chain

KMC X12, 12-speed

Brakes

Shimano MT420 4-piston hydraulic disc, 180mm RT30 front and 160mm rear rotors

TypeHydraulic Disc

Wheels
Rims

Stan’s No Tubes Flow D 29” rims, Shimano MT410 15x110mm front & 12x148mm rear hubs, stainless spokes

Tires

WTB Vigilante 29 x 2.5” Front & Trail Boss 29 x 2.4” Rear, TCS Tubeless

Rider Notes
Riders Also Viewed

Last updated February 26
Not listed for 1,120 days
