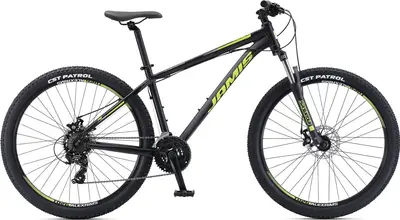

TRAIL X A2
A 27.5″ aluminum frame hardtail crosscountry bike with mid-range components and mechanical disc brakes.
Compare the full range
MSRP | $499 |
---|---|
Weight | 32.0 lbs |
Frame | Aluminum |
Suspension | Hardtail, 100mm |
Fork | Suntour XCE |
Wheels | 27.5″ Aluminum |
Drivetrain | 3 × 7 |
Groupset | Tourney |
Brakes | Mechanical Disc |
For This Bike
Sep 2017 · MBA Action
A Very Affordable Hardtail Here at the MBA office, we have the opportunity to play with some of the coolest bikes on the planet, many of which are
Frame | 6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger |
---|---|
Fork | SR Suntour XCE 28 DS 27.5”, coil spring, external preload adjustor, 28mm stanchions, aluminum lowers, 100mm travel Travel: 100mm Spring Type: Coil |
Bottom Bracket | Sealed cartridge |
Headset | Zero-stack internal cup threadless, 15mm cone spacer |
Stem | Jamis XC alloy threadless, 31.8 x 3˚ rise x 60mm |
Handlebar | Jamis XC alloy riser, 31.8 x 20mm rise x 740mm |
Saddle | Jamis ATB Sport, SL cover, protective front and rear guards |
Seatpost | Jamis alloy micro-adjust, 31.6 x 350mm (15”) 400mm (17”-21”) Type: Rigid |
Pedals | MTB platform, hi-impact resin |
Grips | Kraton |
Rear Derailleur | Shimano TY300 |
---|---|
Front Derailleur | TY500 |
Crank | Forged alloy, 42/34/24T |
Shifters | Shimano EF41, 3x7-speed |
Cassette | Shimano TZ500, 7-speed, 14-34T |
Chain | KMC Z51, 7-speed |
Brakes | Tektro M280 mechanical disc, 160mm rotors and Shimano levers Type: Mechanical Disc |
Rims | Alex TD26 27.5” rims, 32H, alloy 6-bolt disc hubs, 14G nickel-plated spokes |
---|---|
Tires | CST Patrol, 27.5 x 2.25” |
