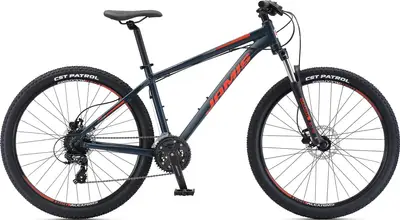

TRAIL X A1
A 27.5″ aluminum frame hardtail crosscountry bike with mid-range components.
Compare the full range
MSRP | $599 |
---|---|
Weight | 31.5 lbs |
Frame | Aluminum |
Suspension | Hardtail, 100mm |
Fork | Suntour XCT |
Wheels | 27.5″ Aluminum |
Drivetrain | 3 × 8 |
Groupset | Tourney, Altus |
Brakes | Hydraulic Disc |
For This Bike
Sep 2017 · MBA Action
A Very Affordable Hardtail Here at the MBA office, we have the opportunity to play with some of the coolest bikes on the planet, many of which are
Frame | 6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger |
---|---|
Fork | SR Suntour XCT 30 HLO 27.5”, coil spring, hydraulic speed lock out adjust, external preload adjustor, 30mm stanchions, aluminum lowers, 100mm travel Travel: 100mm Spring Type: Coil |
Bottom Bracket | Sealed cartridge |
Headset | Zero-stack internal cup threadless, 15mm cone spacer |
Stem | Jamis XC alloy threadless, 31.8 x 3˚ rise x 60mm |
Handlebar | Jamis XC alloy riser, 31.8 x 20mm rise x 740mm |
Saddle | Jamis ATB Sport, SL cover, protective front and rear guards |
Seatpost | Jamis alloy micro-adjust, 31.6 x 350mm (15”) 400mm (17”-21”) Type: Rigid |
Pedals | MTB platform, hi-impact resin |
Grips | Kraton |
Rear Derailleur | Shimano TX800 |
---|---|
Front Derailleur | TY700 |
Crank | Shimano TY-301, 42/34/24T |
Shifters | Shimano M310, 3x8-speed |
Cassette | Shimano HG200, 8-speed, 12-32T |
Chain | KMC Z7, 8-speed |
Brakes | Tektro M275 hydraulic disc, 160mm rotors Type: Hydraulic Disc |
Rims | Alex TD26 27.5” rims, 32H, alloy 6-bolt disc hubs, 14G nickel-plated spokes |
---|---|
Tires | CST Patrol, 27.5 x 2.25” |
