2020 Jamis

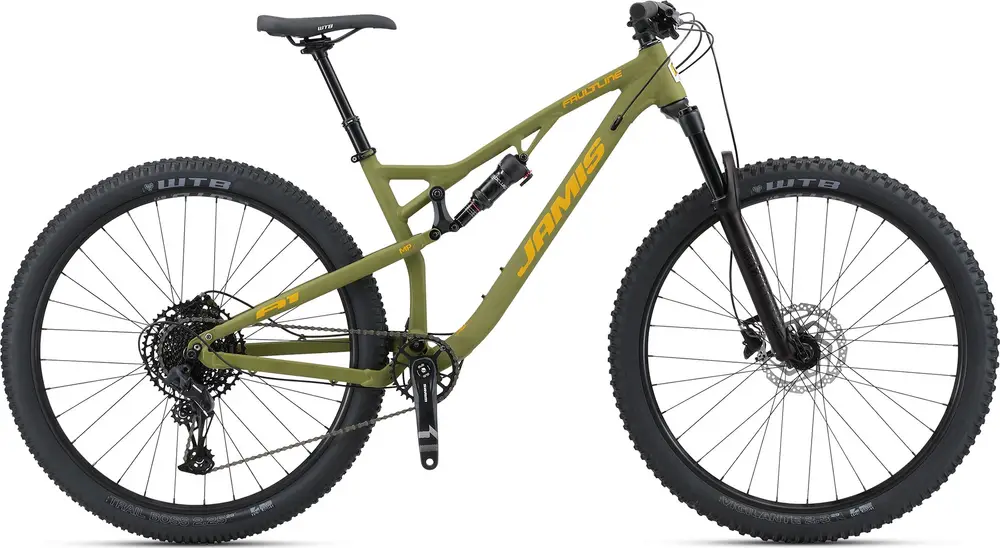

FAULTLINE A1
A 29″ aluminum frame full suspension crosscountry bike with high-end components.
Compare the full range
| MSRP | $2,199 |
|---|---|
| Weight | 33.0 lbs |
| Frame | Aluminum |
| Suspension | Full, 115 / 130mm |
| Fork | RockShox 35 Gold RL |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | SX Eagle, X1 |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Triple-butted 6061 alloy, 115mm travel mp2 suspension, 1.5 - 1 1/8” tapered head tube, asymmetrical chainstays w/12x148mm thru-axle dropout, internal dropper post routing, ISCG05 chainguide mount, Rock Shox Deluxe Select+ RL air shock with rebound adjust & lock out, replaceable derailleur hanger |
|---|---|
| Fork | Rock Shox 35 Gold RL 29", air spring compression, lever actuated lockout, external rebound, 35mm stanchions, magnesium lowers, 15x110mm axle, 130mm travel Travel: 130mm Spring Type: Air |
| Bottom Bracket | SRAM DUB |
| Headset | FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer |
| Stem | Race Face Ride, 50mm |
| Handlebar | Race Face Ride, 35 x 760mm |
| Saddle | WTB Volt |
| Seatpost | KS Rage Dropper, Southpaw remote Type: Dropper |
| Pedals | N/A |
| Grips | Jamis Lock-On |
| Rear Derailleur | SRAM SX Eagle, 12-speed |
|---|---|
| Crank | SRAM X1 Eagle, 32T |
| Shifters | SRAM SX Eagle, 1x12-speed |
| Cassette | SRAM PG1210, 12-speed, 11-50T |
| Chain | SRAM SX Eagle, 12-speed |
| Brakes | Shimano MT401 hydraulic disc, 180mm front & 160mm rear RT26 6-bolt rotors Type: Hydraulic Disc |
| Rims | WTB ST i25 TCS 29" tubeless rims, 32H, Formula 15x110mm front & 12x148mm rear 6-bolt disc hubs, stainless spokes |
|---|---|
| Tires | WTB Vigilante 29 x 2.35” Front & Trail Boss 29 x 2.25” Rear, TCS Tubeless |
