2020 Jamis

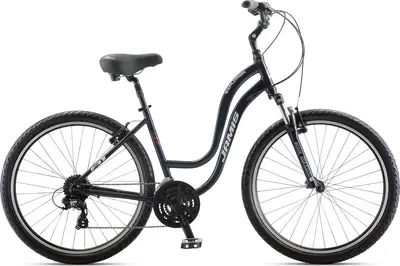

EXPLORER A1 STEP-THRU
A 650b aluminum frame comfort bike with mid-range components and rim brakes.
Compare the full range
Manufacturer Price
$549| Weight | 34.5 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 80mm |
| Fork | Suntour XCE |
| Wheels | 650b Aluminum |
| Drivetrain | 3 × 8 |
| Groupset | Tourney, Shimano |
| Brakes | Rim |
For This Bike
| Frame | 6061 TIG-welded aluminum, all-new sport comfort design with upright ride position, replaceable derailleur hanger, center-mount kickstand bracket |
|---|---|
| Fork | SR Suntour XCE 27.5", coil spring, external preload adjustor, 28mm stanchions, aluminum lowers, 80mm travel Travel: 80mm Spring Type: Coil |
| Bottom Bracket | Sealed cartridge, 68 x 110.5mm |
| Headset | Internal cup, threaded, 1 1/8” |
| Stem | Jamis alloy, angle-adjustable, 90mm ext x 150mm quill (14–18") or 110mm ext x 180mm quill (19–21”) |
| Handlebar | Comfort hi-rise, alloy 25.4 x 80mm rise x 15˚ sweep x 620mm |
| Saddle | Jamis Comfort with memory foam, synthetic suede top, burnished side panels and bumper springs |
| Seatpost | Suspension, alloy micro-adjust, 350mm x 27.2mm, with alloy QR clamp Type: Suspension |
| Pedals | Comfort platform with TPE non-slip insert |
| Grips | Kraton comfort |
| Rear Derailleur | Shimano TX-800 rear, Shimano TY710 31.8mm top swing/dual pull front |
|---|---|
| Crank | SR Suntour XCC-T208, 48/38/28T, 170mm with chainguard |
| Shifters | Shimano EZ-Fire Plus, ST-EF510, 24-speed |
| Cassette | Shimano HG20, 8-speed, 12-32 |
| Chain | KMC Z7 |
| Brakes | Tektro forged alloy direct pull brakes with Shimano levers Type: Rim |
| Rims | Double-wall alloy rims, 32H, alloy hubs with QR, 14g stainless steel spokes |
|---|---|
| Tires | CST - 1918, 27.5 x 2.1 |
