2019 Jamis

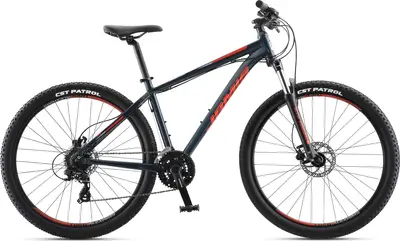

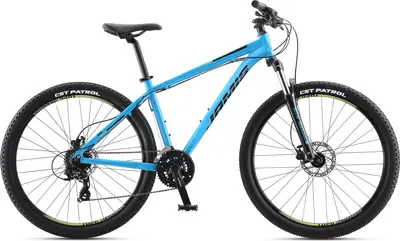

TRAIL X A1

A 27.5″ aluminum frame hardtail crosscountry bike with mid-range components.
Compare the full range

MSRP$599
Weight31.5 lbs
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCT
Wheels27.5″ Aluminum
Drivetrain3 × 8
GroupsetTourney, Altus
BrakesHydraulic Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
TRAIL X A1
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

TRAIL X A1

27 mph

Similar Bikes

Highest gear

(descending)

Reviews
Mountain Bike Action
Tested - Jamis Trail Expert

Sep 2017 · MBA Action

A Very Affordable Hardtail Here at the MBA office, we have the opportunity to play with some of the coolest bikes on the planet, many of which are

Read Review

MTBR
Jamis rolls out women’s 26+ Eden trail bike

Apr 2016

Jamis has debuted 26+ versions of their Dragonfly and Eden models, which the bike maker believes makes perfect sense for women riders. - Mtbr.com

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger

Fork

SR Suntour XCT 30 HLO 27.5”, coil spring, hydraulic speed lock out adjust, external preload adjustor, 30mm stanchions, aluminum lowers, 100mm travel

Travel100mm

Spring TypeCoil

Bottom Bracket

Sealed cartridge

Headset

Zero-stack internal cup threadless, 15mm cone spacer

Stem

Jamis XC alloy threadless, 31.8 x 10˚ rise x 70mm (15/17”), 90mm (19”/21”)

Handlebar

Jamis XC alloy riser, 31.8 x 20mm rise x 720mm

Saddle

Jamis ATB Sport, SL cover, protective front and rear guards

Seatpost

Jamis alloy micro-adjust, 31.6 x 350mm (15”) 400mm (17”-21”)

TypeRigid

Pedals

MTB platform, hi-impact resin

Grips

Kraton

Groupset
Rear Derailleur

Shimano TX800

Front Derailleur

TY700

Crank

Shimano TY-301, 42/34/24T

Shifters

Shimano M310, 3x8-speed

Cassette

Shimano HG200, 8-speed, 12-32T

Chain

KMC Z7, 8-speed

Brakes

Tektro M275 hydraulic disc, 160mm rotors

TypeHydraulic Disc

Wheels
Rims

Alex TD26 27.5” rims, 32H, alloy 6-bolt disc hubs, 14G nickel-plated spokes

Tires

CST Patrol, 27.5 x 2.25”
