110/220V Smart charger, LED status,CUL, 2A

LCD Backlit, Main Power, USB charging Port, Diagnostic, Battery Status, Light Switch, Power-assist Level Selector, Speedometer, Max Speed, Avg Speed, Odometer, Trip Timer

SUNTOUR NEX eBike Rated Suspension with lockout

Hydroformed 6061 Aluminum hybrid ERGOFIT frame with smooth welds. Fender/rack mounts, internal cable routing, Electronic Access Port. Removable integrated battery with security lock.

500W geared brushless hi-torque rear hub motor

PROMAX alloy 30.4mm with quick release (350mm)

MAXXIS Re-Volt 700x47, 28"x1.75" with SilkShield bead-to-bead puncture protection

Elevating this classic step through urban/leisure bike to a whole new level, the Elite 3HD fights battery anxiety with a 576Wh (48V x 12Ah) battery offering up to 75km of range that’s secure yet simple to remove and charge off the bike. Designed for no-fuss maintenance and serviceability, our Easy Access Port and quick-connect electronics allow for anyone to ride with confidence. Stay safe and connected with our USB phone charging port, conveniently integrated into the display. ErgoFit geometry means an upright, commanding and comfortable riding experience for any riders 5ft to 6ft 2in.

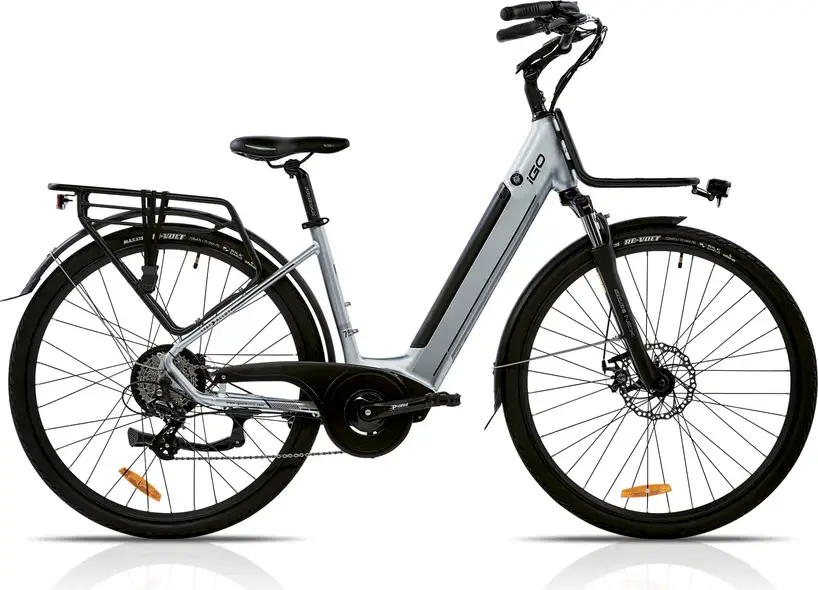

iGO Electric Elite 3HD

A 700c aluminum frame commuter e-bike with modest components and tektro mechanical disc brakes.

Weight	52.2 lbs
Frame	Aluminum
Suspension	Hardtail
Fork	Suntour NEX
Wheels	700c Aluminum
Drivetrain	1 × 8
Groupset	Altus
Motor	500W hub-drive
Brakes	Tektro Mechanical Disc

Frame	Hydroformed 6061 Aluminum hybrid ERGOFIT frame with smooth welds. Fender/rack mounts, internal cable routing, Electronic Access Port. Removable integrated battery with security lock.
Fork	SUNTOUR NEX eBike Rated Suspension with lockout Spring Type: Coil
Stem	PROMAX tooless adjustable threadless
Handlebar	Alloy ERGOFIT riser touring bar
Saddle	SELLE ROYAL Nuvola - black
Seatpost	PROMAX alloy 30.4mm with quick release (350mm) Type: Rigid
Grips	VELO ergonomic grip

Rear Derailleur	SHIMANO Altus 8-speed
Front Derailleur	NA
Crank	42T with Narrow Wide teeth
Shifters	SHIMANO rapidfire 8-speed shifter
Cassette	8-speed 11-34T
Chain	KMC X8
Brakes	TEKTRO ARIES mechanical disc Type: Tektro Mechanical Disc
Brake Levers	TEKTRO ARIES

Rims	iGO 700C Dual Wall Alloy
Tires	MAXXIS Re-Volt 700x47, 28"x1.75" with SilkShield bead-to-bead puncture protection
Disc Rotors	180mm

Motor	500W geared brushless hi-torque rear hub motor
Battery	Lithium-Ion removable battery
Display	LCD Backlit, Main Power, USB charging Port, Diagnostic, Battery Status, Light Switch, Power-assist Level Selector, Speedometer, Max Speed, Avg Speed, Odometer, Trip Timer
Charger	110/220V Smart charger, LED status,CUL, 2A

2024 iGO ElectricElite 3HD

2024 iGO Electric
Elite 3HD
