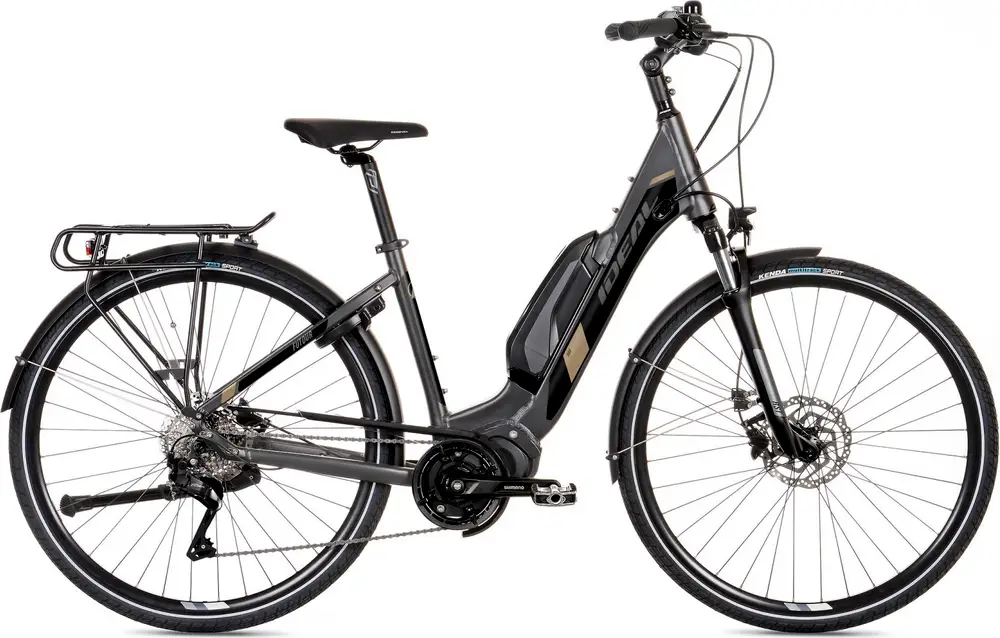

Today’s DealsFUTOUR E509 WAVE CUES
An aluminum frame touring e-bike with mid-range components and shimano hydraulic disc brakes.
Compare the full range
| Frame | Aluminum |
|---|---|
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 9 |
| Groupset | CUES |
| Motor | Shimano 250W 40Nm mid-drive |
| Battery | Shimano 418Wh |
| Brakes | Shimano Hydraulic Disc |
| Frame | eTouring, AL6061-T4/T6, Shimano STEPS, hydroforming, internal brake and cables BB Standard: STEPS, Press Fit |
|---|---|
| Fork | RST Volant-T, 60 mm, lockout, adjustable preload Spring Type: Coil |
| Bottom Bracket | STEPS, press-fit |
| Stem | ID - Project, alloy, adjustable angle, diameter 31.8 mm |
| Handlebar | ID - Project, alloy riser bar, 640 mm |
| Saddle | Selle Royal Premium Moderate VLS, New Essenza |
| Seatpost | ID - Project, 31.9 mm Type: Rigid |
| Rear Derailleur | Shimano Cues RD-U4000 GS |
|---|---|
| Crank | Shimano STEPS FC-E5010, 38T |
| Shifters | Shimano STEPS SC-E5000 switch / Shimano Cues SL-U4000-9R |
| Cassette | Shimano Cues CS-LG300-9, 11-36T |
| Chain | Shimano CN-LG500 |
| Brakes | Shimano BR-MT200/BL-M201, hydraulic disc brakes, 180/180 mm Type: Shimano Hydraulic Disc |
| Rims | Cross X-6 Disc, 622-21 |
|---|---|
| Front Hub | Shimano HB-TX505 |
| Rear Hub | Shimano TX505-9 |
| Tires | Kenda 47-622 (700x45C) K1172 |
| Motor | Shimano STEPS DU-E5000, 36V, 250W, 40Nm |
|---|---|
| Battery | Shimano STEPS BT-E8014, 36V, 11.6Ah, 418Wh |
| Display | Shimano STEPS SC-E6100, Large display |
| Fenders | SKS PET, 56 mm |
|---|---|
| Racks | Standwell, Carry more, Aluminium |
| Lock | AXA Solid Plus, Frame integrated |
