2024 Ideal

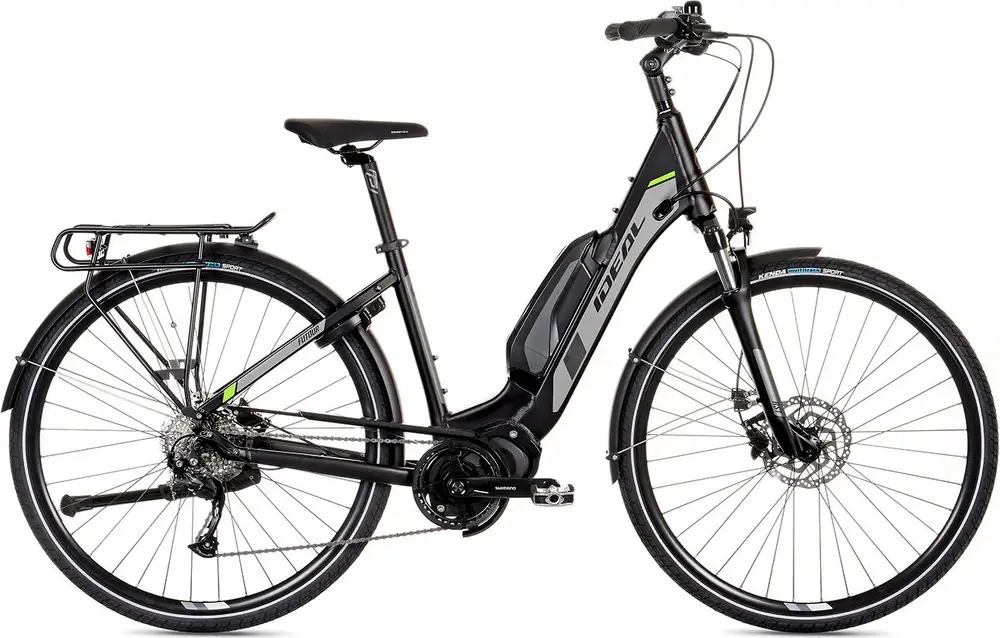

FUTOUR E509 WAVE

An aluminum frame touring e-bike with mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

£1,990($2,669)
FrameAluminum
Wheels700c Aluminum
Drivetrain1 × 9
GroupsetAltus
MotorShimano 250W 40Nm mid-drive
BatteryShimano 418Wh
BrakesShimano Hydraulic Disc
View on idealbikes.co.ukLearn about Ideal
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
smoothrugged
FUTOUR E509 WAVE
Other Touring bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

FUTOUR E509 WAVE

32 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full FUTOUR model range

View Comparison
Geometry
Specs
Build
Frame

eTouring, AL6061-T4/T6, Shimano STEPS, hydroforming, internal brake and cables

BB Standard: STEPS, Press Fit

Fork

RST Volant-T, 60mm, adjustable preload

Spring Type: Coil

Bottom Bracket

STEPS, press-fit

Stem

ID - Project, alloy, adjustable angle, diameter 31.8 mm

Handlebar

ID - Project, alloy riser bar, 640 mm

Saddle

Selle Royal Premium Moderate VLS, New Essenza

Seatpost

ID - Project, 31.9 mm

Type: Rigid

Groupset
Rear Derailleur

Shimano Altus RD-M2000 SGS

Crank

Shimano STEPS FC-E5010, 38T

Shifters

Shimano STEPS SC-E5000 switch // Shimano Altus SL-M2010-R

Cassette

Shimano CS-HG201-9, 11-34T

Chain

Shimano CN-HG6070-9

Brakes

Shimano BR-MT200/BL-M201, hydraulic disc brakes, 180/180 mm

Type: Shimano Hydraulic Disc

Wheels
Rims

Cross X-6 Disc, 622-21

Front Hub

Shimano HB-TX505

Rear Hub

Shimano FH-TX505

Tires

Kenda 47-622 (700x45C) K1172

Electric Components
Motor

Shimano STEPS center drive unit DU-E5000, 36V, 250W, 40Nm

Battery

Shimano STEPS battery (down tube) BT-E8014, 36V, 11.6Ah, 418Wh(11.6Ah)

Display

Shimano STEPS large display SC-E6100

Accessories
Fenders

SKS PET, 56 mm

Racks

Standwell, Carry more, Aluminium

Lock

AXA
