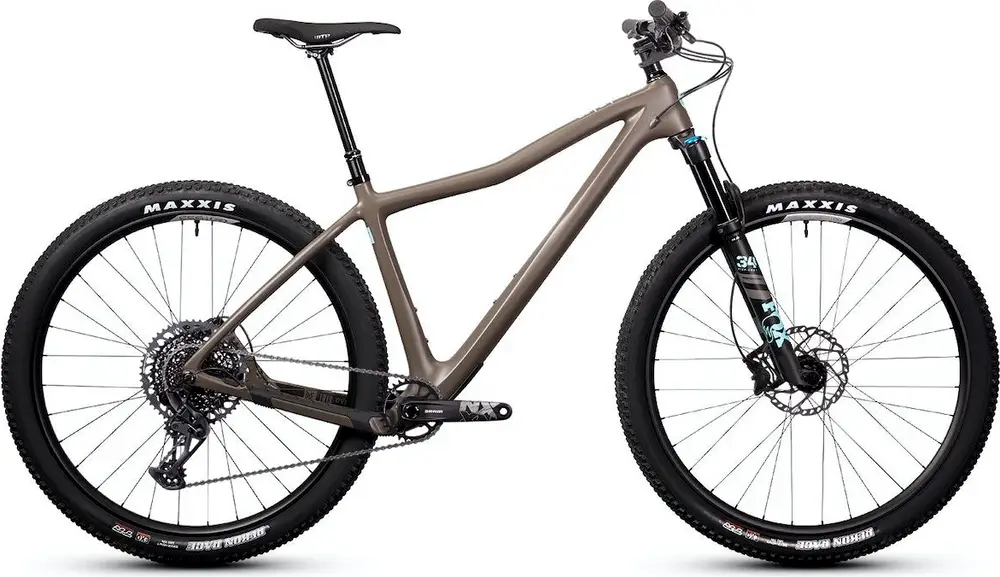

2023 Ibis
DV9 V2 NGX
A 29″ carbon frame hardtail trail bike with high-end components.
Compare the full range
Manufacturer Price
$3,499| Frame | Carbon |
|---|---|
| Suspension | Hardtail, 120mm |
| Fork | Fox Performance Float 34 |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle, NX Eagle |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full DV9 model range
View Comparison5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2023
The carbon fiber Ibis DV9 hits the trails again with a modern trail hardtail, with sizes to fit any rider and NICA racer friendly prices!
| Frame | Carbon Fiber BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.6" Colors: Muddy Waters; Purple Crush |
|---|---|
| Fork | Fox Float 34 Performance Series, Step-Cast, Grip, 120mm, 29’, 110x15 Travel: 120mm Spring Type: Air |
| Bottom Bracket | SRAM DUB BSA |
| Headset | Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower |
| Stem | Ibis 31.8mmS/M: 40mm, L/XL: 50mm |
| Handlebar | Ibis Aluminum, 780mm |
| Saddle | WTB Silverado |
| Seatpost | KS Rage-i DropperS: 125mm, M: 150mm, L/XL: 170mm Type: Dropper |
| Grips | Lizard Skin Charger Evo |
| Rear Derailleur | SRAM GX Eagle |
|---|---|
| Crank | SRAM NX Eagle DUB Wide spindle, 30t Alloy RingS/M: 170mm, L/XL: 175mm |
| Shifters | SRAM NX Eagle |
| Cassette | SRAM XG 1275 10-50 12 speed |
| Chain | SRAM NX Eagle |
| Chain Guide | Ibis Top Guide |
| Brakes | Shimano Deore M6100, 2 Piston Type: Hydraulic Disc |
| Rims | Ibis 933 Aluminum Rims, Ibis Hubs |
|---|---|
| Tires | Maxxis Recon Race 29" x 2.4" Exo/TR WT |
| Disc Rotors | Shimano SM-RT66, 180mm |
Last updated March 18
Not listed for 398 days
