2024 HEAD
Muret TRAIL

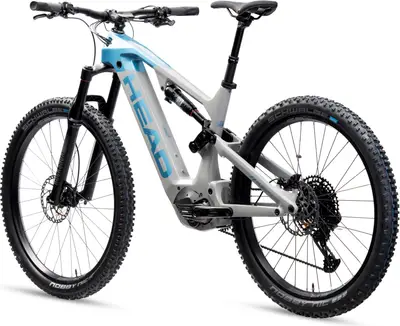

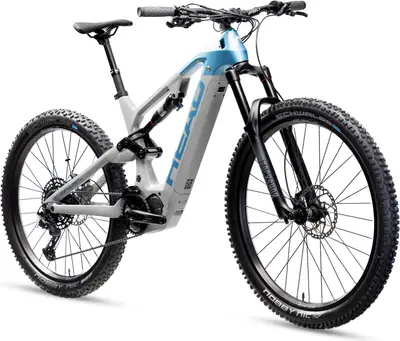

A 29″ / 27.5″ carbon frame full suspension enduro e-bike with upper mid-range components.
Compare the full range
| Frame | Carbon |
|---|---|
| Suspension | Full, 150 / 150mm |
| Fork | RockShox 35 Gold RL |
| Shock | RockShox Deluxe Select+ |
| Wheels | 29″ / 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX, NX |
| Motor | Shimano 250W 85Nm hub-drive |
| Battery | 630Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
| Frame | Full carbon with 150mm travel, integrated battery, internal cable routing Color: Greyblack Matt |
|---|---|
| Fork | Rock Shox 35 Gold, Travel: 150mm, tapered, rebound and lockout adjustments Travel: 150mm |
| Shock | Rock Shox Deluxe Select+ RT , 230x60mm Travel: 150mm |
| Headset | FSA Orbit 1.5E ZS, tapered |
| Stem | FSA V-Drive 60/31.8mm, length: 60mm, 31.8 clamp |
| Handlebar | FSA V-Drive , 15mm rise, 740mm width, 31.8 clamp |
| Saddle | Prologo Kappa RS, |
| Seatpost | Kind Shock e20i , 375/31.6mm, travel 100mm Type: Dropper |
| Pedals | Wellgo M272T DU, |
| Rear Derailleur | SRAM GX 12 speed, eagle 12 speed |
|---|---|
| Crank | FSA EP8, chainring 36t, length 175mm |
| Shifters | SRAM NX, eagle, 1×12 |
| Chain | KMC e12, |
| Chain Guide | Shimano STEPS SM-CDE70, |
| Brakes | Clarks M4 , 180/180mm disc brakes Type: Hydraulic Disc |
| Rims | ERX, 29” front, 27.5” rear 32h |
|---|---|
| Front Hub | HBC Pro, 15x110mm |
| Rear Hub | HBC Pro , 12x148mm, HG body |
| Tires | Schwalbe Nobby Nic , 29×2.6” front 27.5×2.6”rear, TLE |
| Motor | Shimano DUEP8 , Power 250W, max torque: 85Nm, max support up to 200% |
|---|---|
| Battery | Darfon , Capacity: 630Wh, integrated |
| Display | STEPS KSCE7000, |
