2020 Haro

Annex 24

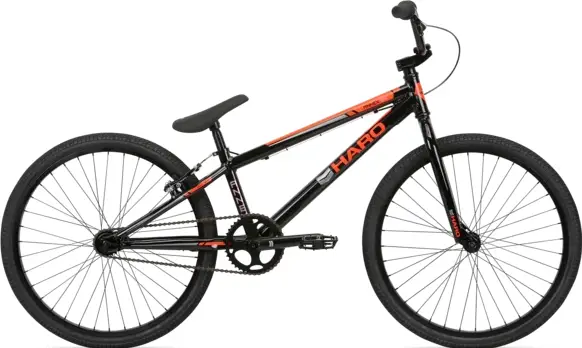

A 24″ aluminum frame bmx bike with rim brakes.
Compare the full range

MSRP$469
Weight23.5 lbs
FrameAluminum
SuspensionRigid
ForkSteel
Wheels24″ Aluminum
BrakesRim
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Sizing
One Size

3'11" +

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

6061 Series Alloy Frame w/ 3D Dropouts w/ Built In Chain Tensioners

Fork

Full Cr-Mo 1 1/8" Threadless w/ Tapered Legs

Bottom Bracket

Sealed Bearing Euro

Headset

Threadless Loose Ball, 1 1/8"

Stem

Forged Alloy Top-Load, 45mm Ext.

Handlebar

Hi-Ten, 5.25" Rise

Saddle

Haro Slim Padded 1-pc

Seatpost

Alloy, 27.2mm

TypeRigid

Pedals

DX Alloy, 9/16"

Grips

Micro Knurl Grips

Groupset
Crank

Haro 3-pc Cr-Mo, 175mm

Cassette

40t Alloy

Chain

KMC 410

Brakes

Promax MV-295L Alloy V-Brake

TypeRim

Brake Levers

Promax XL-378 Alloy Lever

Wheels
Rims

24" Alloy 36h, Single Wall

Front Hub

Alloy 36h, Loose Ball

Rear Hub

Alloy Flip-Flop 36h, Loose Ball

Tires

Kenda "Kontact" 24 x 1.75""
