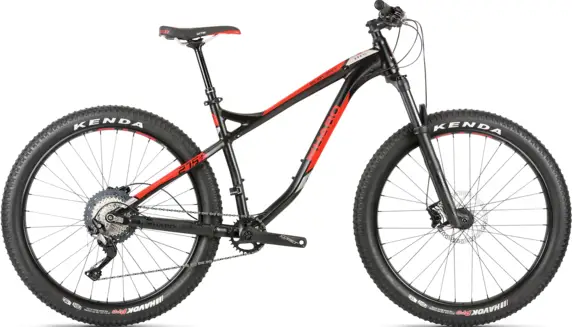

2019 Haro

Subvert HT5

A 27.5″ aluminum frame hardtail trail bike with upper mid-range components.
Compare the full range

MSRP$1,849
FrameAluminum
SuspensionHardtail, 120mm
ForkRockShox Recon Silver RL
Wheels27.5″ Aluminum
Drivetrain1 × 11
GroupsetSLX, FSA
BrakesHydraulic Disc
SeatpostDropper
View on haromtb.comLearn about Haro
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Subvert HT5
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

22 mph

Subvert HT5

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

4'11" – 5'5"

SM

5'2" – 5'7"

MD

5'4" – 5'10"

LG

5'7" – 6'1"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

6061-T6 series alloy Hardtail, 27.5" Plus / 29" geometry, tapered 1.5" head tube, 73mm BB shell, 12x148mm Boost thru-axle dropouts

Fork

New Recon RL 29"-B Boost; 1-1/8 - 1.5" tapered alloy steerer, 120mm travel, Solo Air, 15x110mm thru-axle

Travel: 120mm

Spring Type: Air

Bottom Bracket

Mega Exo BB-7100 Boost

Headset

FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm Head Tube, w/ 8MM top cap

Stem

Pivit alloy Trail, 3D Forged, 0 Deg. 4 bolts, ext.: 60mm

Handlebar

Pivit alloy, 20mm rise, 760mm wide; 9 Deg. sweep

Saddle

WTB Volt Sport w/ color accents

Seatpost

X-Fusion Manic 125 Dropper post w/ shifter-type remote, 7075 alloy, 31.6x125mm

Type: Dropper

Pedals

N/A

Groupset
Rear Derailleur

Shimano SLX, RD-M7000, SGS 10/11-spd Top normal, Shadow Plus design

Front Derailleur

GW alloy chain guide, Front Der. plate mounted

Crank

FSA Comet Modular MegaExo Boost, 30T Megatooth Crmo Chainring

Shifters

Shimano SLX, SL-M7000, 1x11-spd, Right side only, w/o optical gear display

Cassette

Shimano CS-M7000, 11-spd 11-46T

Chain

KMC X11-1 NP/GY, 1/2" x 11/128", 1x11 Specific

Brakes

Shimano BR-MT400 hydraulic, 180/160mm rotors

Type: Hydraulic Disc

Brake Levers

Shimano BL-MT400

Wheels
Rims

WTB ST i35 27.5" TCS 2, 40mm width, alloy double wall rims w/ TCS i35 rim tape

Front Hub

Pivit Boost Disc alloy 32h, Sealed Bearings, 15x110mm Frt & 12x148mm Rear Thru-Axles

Rear Hub

Pivit Boost Disc alloy 32h, Sealed Bearings, 15x110mm Frt & 12x148mm Rear Thru-Axles

Tires

Kenda Havoc 27.5x2.8", TCS, Aramid Bead 120 tpi
