Titan / Black - Matt

The HardNine 10 has everything that sporty touring eBikers want: The compact Bosch Performance CX Gen 4 motor accelerates precisely and without delay. Thanks to the 120mm suspension fork from RockShox and the smooth-running 29" wheels, even roots or rough surfaces do not faze this eHardtail. High-quality shifting and braking components from Shimano and the telescopic seatpost ensure smooth and safe riding pleasure.Learn More

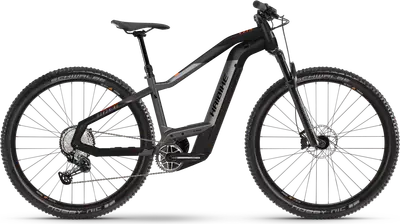

Haibike HardNine 10

Frame size MLXL

A 29″ aluminum frame hardtail trail e-bike with upper mid-range components.

Frame	Aluminum
Suspension	Hardtail, 140mm
Fork	RockShox 35 Gold RL
Wheels	29″ Aluminum
Groupset	SLX, Deore
Motor	Bosch hub-drive
Battery	Bosch 625Wh
Brakes	Shimano Deore Hydraulic Disc
Seatpost	Dropper

Frame	MTB Hardtail Aluminium Color: Titan / Black - Matt
Fork	Rockshox 35 Gold RL 140 mm Travel: 140mm Spring Type: Air
Bottom Bracket	integrated in the motor
Handlebar	Haibike TheBar +++ Gravity Dia. 31.8 mm
Saddle	Selle Royal Vivo
Seatpost	Haibike Dropperpost Type: Dropper
Pedals	Freeridepedal

Rear Derailleur	Shimano SLX M7100
Crank	Haibike The Crank ++
Shifters	Shimano Triggershift Deore M6100
Cassette	Shimano M6100
Chain	Shimano Chain CN-M6100
Brakes	Shimano Hydraulic Disc brake M6120 Type: Shimano Deore Hydraulic Disc

Rims	Rodi Hollow rim Tryp 30
Tires	Schwalbe Nobby Nic Performance 65-622

Motor	Bosch
Battery	Bosch PowerTube 625 Wh
Display	Bosch Purion
Charger	Bosch Quick Charger 4A

2024 HaibikeHardNine 10

2024 Haibike
HardNine 10
