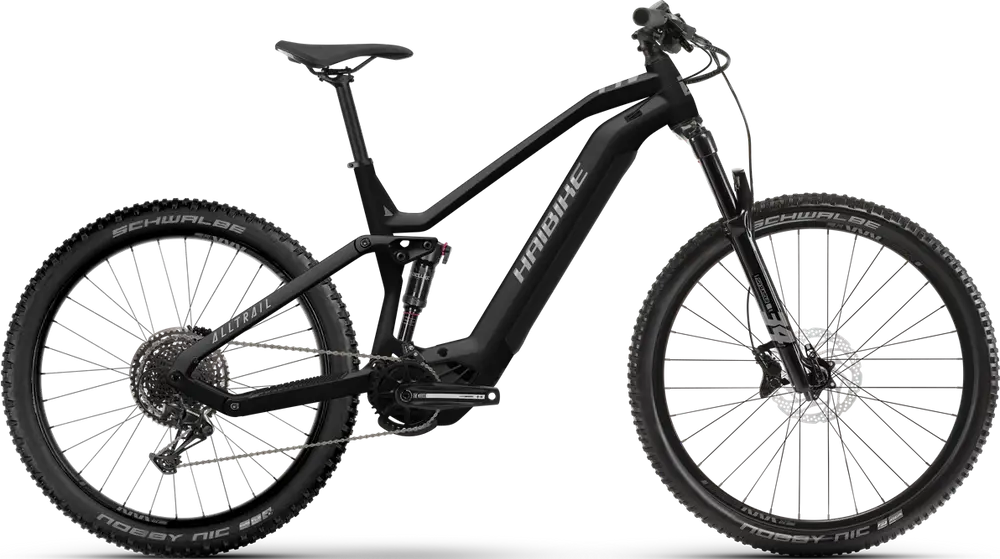

2023 Haibike

ALLTRAIL 3

A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

€4,299($5,002)
FrameAluminum
SuspensionFull, 140mm front
ForkSuntour XCR Air
ShockRockShox Deluxe Select+
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetmicroSHIFT Advent X
MotorYamaha 250W 75Nm mid-drive
Battery720Wh
BrakesShimano Hydraulic Disc
View on haibike.comLearn about Haibike
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
ALLTRAIL 3
Other Trail bikes
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full ALLTRAIL model range

View Comparison
Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Aluminium

Colors: Black / Titan - Matt; Grey / Neon Yellow - Gloss

Fork

SR Suntour XCR34 Air LO-R Boost, Travel: 140mm

Travel: 140mm

Spring Type: Air

Shock

RockShox, Deluxe select plus, Air, Trunnion Mount

Bottom Bracket

integrated in the motor

Headset

Acros, BlockLock, Aluminium

Stem

Alu, A-head

Handlebar

Haibike Components, TheBar ++, 780 mm

Saddle

Selle Royal, Vivo

Seatpost

Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm

Type: Rigid

Pedals

Freeridepedal, Aluminium, with Reflector

Groupset
Rear Derailleur

Shimano, Microshift Advent X RD-M6250M

Crank

Steel, 38 teeth

Shifters

Shimano, Microshift Advent X SLM9505

Cassette

Shimano, Microshift Advent X HG104

Chain

KMC, e10S

Chain Guide

Nylon directmount

Brakes

Shimano, MT420, 4-piston disc brake

Type: Shimano Hydraulic Disc

Brake Levers

Shimano, MT401, Aluminium,

Wheels
Rims

Rodi, Tryp 30, with eyelets, hollow rim, Aluminium

Spokes

Sapim, Race, Black

Tires

Schwalbe, Nobby Nic Performance, 60-622, 29"

Electric Components
Motor

Yamaha, PW-S2, 250W, 75 Nm

Battery

InTube 720 Wh

Display

Yamaha, Side Switch, 1.7" LCD, 7 functions
