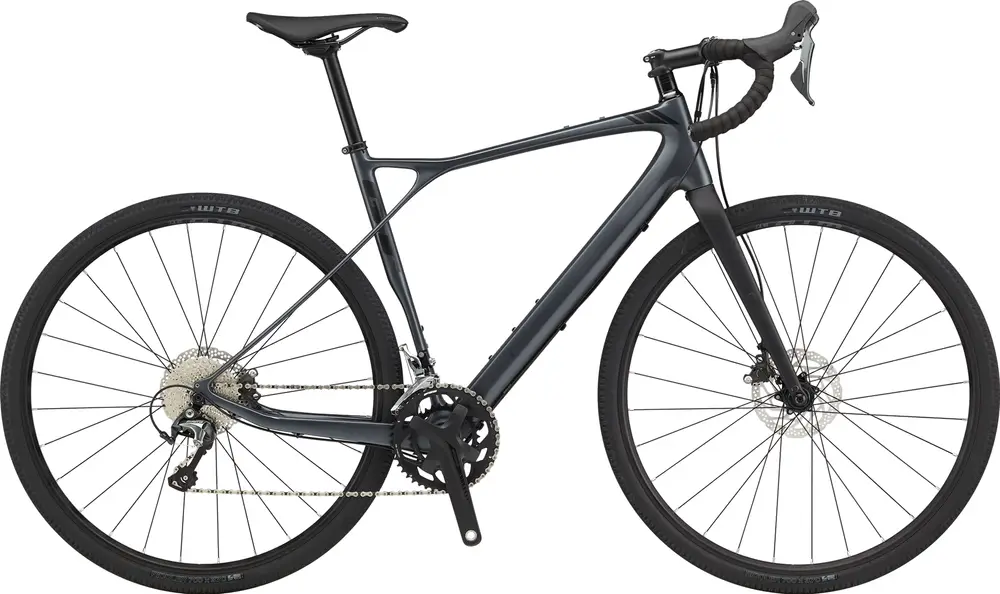

The 2020 GT Grade Carbon Elite is a carbon frame gravel bike with mid-range components and hydraulic disc brakes.
View on www.gtbicycles.com
Notify me when this bike becomes available or goes on sale.
2 × 10 — 20 speed
The Grade Carbon Elite is easier to ride up hills than similar bikes.
The Grade Carbon Elite is geared about the same as similar bikes for riding downhill.
Estimated spec level of the Grade Carbon Elite compared to other gravel bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.
|Frame||All New Grade Carbon 700c Frame, EnduRoad Triple Triangle Design feat. Floating Seatstays, 12x142 Thru Axle, Flat Mount Disc (160mm), Tapered Headtube, Di2 and Dropper Compatible, PF30|
|Fork||All-New Grade Carbon fork with tapered carbon steerer, 12x100 Thru Axle, Flat Mount Disc (160mm), pannier and fender compatible|
|Bottom Bracket||FSA PressFit 30|
|Headset||FSA NO. 44, Integrated, Sealed Bearing|
|Stem||GT Design 3D forged 6061, 4 bolt face plate 6° Rise, 31.8mm Clamp|
|Handlebar||GT DropTune RS, alloy, 16° flare|
|Saddle||Fabric Scoop Radius Sport, steel rails|
|Seatpost||GT alloy, 27.2x350mm (44-58), 400mm (61)|
|Grips||Velo Cork, 3mm|
|Rear Derailleur||Shimano Tiagra GS|
|Front Derailleur||Shimano Tiagra, braze-on|
|Crank||FSA Omega Adventure, 46/30|
|Shifters||Shimano Tiagra hydro disc, 2x10|
|Cassette||Shimano HG500, 11-34, 10-speed|
|Chain||KMC X10, 10-speed|
|Brakes||Shimano Tiagra hydro disc, 160/160mm RT30 rotors|
|Brake Levers||Shimano Tiagra hydro disc|
|Rims||WTB ST i23 TCS 2.0, 28h, tubeless ready|
|Spokes||Stainless steel, 14g|
|Front Hub||Formula Ultralight 6 bolt disc sealed 28h|
|Rear Hub||Formula Ultra light 6 bolt disc sealed casette 28h|
