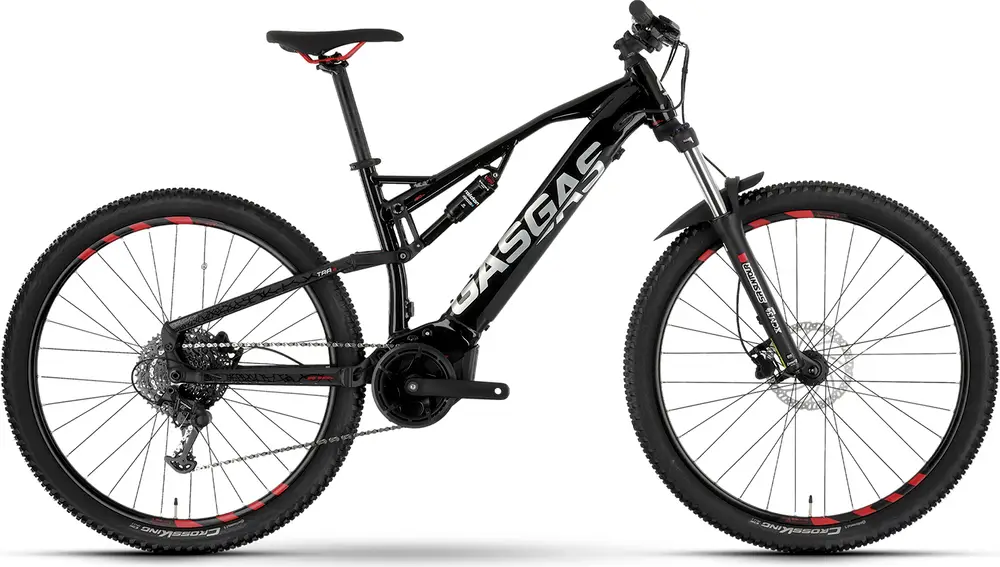

2025 GASGAS

TRA 5

A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

€2,999($3,489)
Price History
FrameAluminum
SuspensionFull, 130 / 130mm
ForkSuntour XCM
ShockSuntour
Wheels29″ Aluminum
Drivetrain1 × 9
GroupsetTektro EDRIVE 9
MotorYamaha 250W 60Nm mid-drive
BatteryYamaha 500Wh
BrakesTektro Hydraulic Disc
View on gasgas.comLearn about GASGAS
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
TRA 5
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

TRA 5

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full TRA model range

View Comparison
Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
Specs
Build
Frame

29", Alloy 6061, Integrated battery, Boost, 130 mm

Color: Jet Black

Fork

SR SUNTOUR XCM34 Boost LO, Coil, 130 mm, tapered

Travel: 130mm

Spring Type: Coil

Shock

SR SUNTOUR Raidon R, Air, 210x55 mm

Travel: 130mm

Headset

GASGAS ZS44/ZS56

Stem

GASGAS 31,8, 7 °, Ahead

Handlebar

GASGAS Riser 31.8 mm, 780 mm, Sweep: 6 °, Rise: 15 mm

Saddle

GASGAS MTB

Seatpost

GASGAS, 31.6 mm, 350 mm, Patent

Type: Rigid

Pedals

GASGAS, aluminum

Grips

GASGAS MTB, Lock-on grips

Groupset
Rear Derailleur

Tektro RD-M350, 9-S

Crank

GASGAS, 38 T

Shifters

Tektro SL-M350R

Cassette

Tektro CS-M350, 11-46 T

Chain

KMC e9S

Chain Guide

Direct Mount

Brakes

Front: Tektro HD-M280, 2-piston, Hydraulic disc brake, Rear: Tektro HD-M280, 2-piston, Hydraulic disc brake

Type: Tektro Hydraulic Disc

Wheels
Rims

Front: Rim: Mach 1 650E, With eyelets, Tubeless ready / Hub: GASGAS DA210F, 6-hole, 15x110 mm, thru axle, Rear: Rim: Mach 1 650E, With eyelets, Tubeless ready / Hub: GASGAS DA210R, 6-hole, 12x148 mm, thru axle

Tires

Continental Cross King, 58-622, 29 x 2.3

Disc Rotors

Tektro TR24, 180 mm, 6-hole

Electric Components
Motor

Yamaha PW-TE, 250 W, 60 Nm

Battery

Yamaha ML500, 500 Wh, 36 V

Display

Yamaha Display A, LCD-Display, Micro-USB

Charger

Yamaha rapid charger, 4 A
