Tektro HD-M290, hydraulic disc, 180/160mm rotors

SR Suntour SF15-XCM-HLO-DS-27.5 w/ hydraulic lockout, 100mm travel

Fuji A2-SL custom-butted alloy front triangle w/ PowerCurve down tube, oversized seat tube, Fuji A1-SL alloy rear triangle w/ S-bend chainstays, post disc mount, cold-forged dropout and replaceable hanger

Oval Concepts riser bar, 6061 alloy, 15mm rise, 9° sweep, 31.8mm clamp

FSA NO 10, 1 1/8" semi-integrated, caged bearings

Vera Terra DPD16 rims 32h, Formula DC-20LW front, Formula DC-22LW rear disc hubs, 14g stainless black spokes

Oval Concepts, 6061 alloy, 31.6mm diameter

Oval Concepts 313, 3D-forged 6061 stem body, +/-7°

Vera Eos, 27.5" x 2.2", 30tpi or Vera Eos, 29” x 2.1”, 30tpi

The Nevada is designed with trail-ready geometry adapted from Fuji's top-end models. No hype just reliable components on a proven frame built for real-world conditions. Lauded for its versatility, the Nevada can take riders from their first weekend ride to their first mountain bike race.

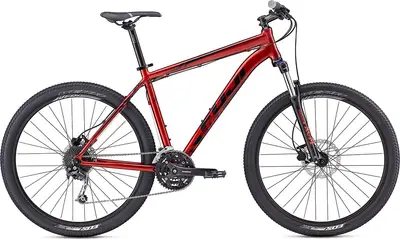

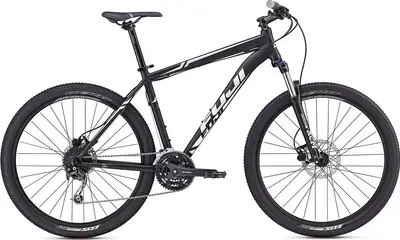

Fuji Nevada 1.5

A 27.5″ aluminum frame hardtail crosscountry bike with mid-range components.

Weight	31.7 lbs
Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	Suntour XCM
Wheels	27.5″ Aluminum
Drivetrain	3 × 9
Groupset	Deore, Altus
Brakes	Tektro Hydraulic Disc

Frame	Fuji A2-SL custom-butted alloy front triangle w/ PowerCurve down tube, oversized seat tube, Fuji A1-SL alloy rear triangle w/ S-bend chainstays, post disc mount, cold-forged dropout and replaceable hanger
Fork	SR Suntour SF15-XCM-HLO-DS-27.5 w/ hydraulic lockout, 100mm travel Travel: 100mm Spring Type: Coil
Bottom Bracket	VP-BC73, sealed cartridge bearing
Headset	FSA NO 10, 1 1/8" semi-integrated, caged bearings
Stem	Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
Handlebar	Oval Concepts riser bar, 6061 alloy, 15mm rise, 9° sweep, 31.8mm clamp
Saddle	Oval Concepts 200, steel rail
Seatpost	Oval Concepts, 6061 alloy, 31.6mm diameter Type: Rigid
Pedals	Resin platform
Grips	Oval Concepts 400, dual density Kraton

Rear Derailleur	Shimano Deore, 9-speed
Front Derailleur	Shimano Altus, 34.9mm
Crank	Shimano Acera, alloy, 44/32/22T
Shifters	Shimano Altus, Rapid Fire, 9-speed
Cassette	Shimano HG200-9, 11-34T, 9-speed
Chain	KMC Z99, 9-speed
Brakes	Tektro HD-M290, hydraulic disc, 180/160mm rotors Type: Tektro Hydraulic Disc
Brake Levers	Tektro HD-M290, hydraulic disc

Rims	Vera Terra DPD16 rims 32h, Formula DC-20LW front, Formula DC-22LW rear disc hubs, 14g stainless black spokes
Tires	Vera Eos, 27.5" x 2.2", 30tpi or Vera Eos, 29” x 2.1”, 30tpi

2017 FujiNevada 1.5

2017 Fuji
Nevada 1.5
