Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices
Today’s Deals2016 Fuji

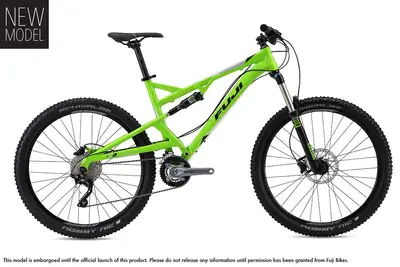

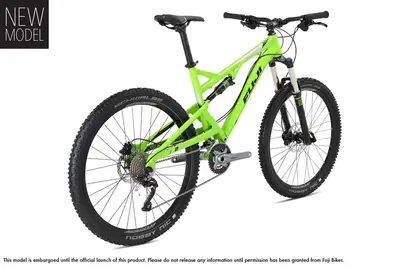

Reveal 27.5 1.0
A 27.5″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range
| Weight | 30.2 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 140mm front |
| Fork | RockShox Sektor |
| Shock | RockShox Monarch RL |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 2 × 10 |
| Groupset | XT, Deore |
| Brakes | Shimano Hydraulic Disc |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Fuji A2-SL custom-butted alloy, w/ PowerCurve down tube, tapered 1 1/8" - 1.5" head tube, oversized seat tube |
|---|---|
| Fork | Rock Shox Sektor Silver TK Solo Air 27.5 w/ tapered alloy steerer, 15mm Thru axle, 140mm travel Travel: 140mm Spring Type: Air |
| Shock | Rock Shox Monarch RL |
| Bottom Bracket | Shimano sealed cartridge |
| Headset | FSA NO. 42B, 1 1/8" - 1.5", caged bearings |
| Stem | Oval Concepts 600AM, 6061 3D-forged alloy, 31.8mm clamp diameter, 0° rise |
| Handlebar | Oval Concepts 200, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise |
| Saddle | Oval Concepts 200 w/ steel rails |
| Seatpost | Oval Concepts 300, 6061 alloy, 30.9mm, double-bolt micro-adjust Type: Rigid |
| Pedals | N/A |
| Rear Derailleur | Shimano Deore XT shadow, 10-speed |
|---|---|
| Front Derailleur | Shimano Deore, 34.9mm |
| Crank | Shimano Deore, hollow Tech II w/ integrated spindle, 38/24T |
| Shifters | Shimano Deore, Rapid Fire, 20/30-speed |
| Cassette | Shimano HG50, 11-36T, 10-speed |
| Chain | KMC X10 w/ MissingLink, 10-speed |
| Brakes | Shimano 395, hydraulic disc, 180/160mm rotors Type: Shimano Hydraulic Disc |
| Brake Levers | Shimano 396, hydraulic disc |
| Rims | Vera Terra DPD22 rim 32h, Formula DC-51 front, DC-308 rear disc hubs, stainless black spokes |
|---|---|
| Tires | Schwalbe Nobby Nic Performance, 27.5" x 2.25", 67tpi, folding |
First added June 27
Last updated June 27
Not listed for 3,272 days
