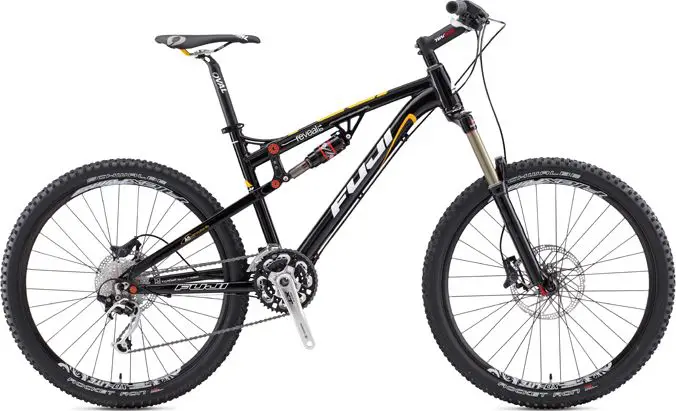

2011 Fuji

Reveal 1.0

A 26″ aluminum frame full suspension enduro bike with high-end components.
Compare the full range

Weight30.0 lbs
FrameAluminum
SuspensionFull, 150mm front
ForkRockShox Revelation RC
ShockRockShox Monarch RT3
Wheels26″ Aluminum
Drivetrain3 × 10
GroupsetXT
BrakesShimano SLX Hydraulic Disc
Learn about Fuji
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Reveal 1.0
Other Enduro bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

31 mph

Reveal 1.0

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

A6-SL Quaternary phase Aluminum, custom butted, integrated Tapered head tube with 1 1/2" lower bearing, hydroformed top and down tube, water bottle mount

BB Standard: BSA, 73mm, Threaded

Fork

ROCKSHOX Revelation RLT 3 Position Air Tapered Steerer w/ 15mm Thru Axle, 150mm Travel, w/ PopLoc Remote LockOut

Travel: 150mm

Spring Type: Air

Shock

ROCKSHOX Monarch RT3 High Volume

Bottom Bracket

Shimano Press In Bearing system

Headset

Fuji MTB 1 1/8-1 1/5" Semi-Integrated, 30mm spacers

Stem

Oval M-600 RBT 2014 Al Stem 31.8mm

Handlebar

Oval M-600 15mm 5sweep Double Butted 7050 Riser Bar 31.8mm

Saddle

Oval M-200 w/CrMo Rail

Seatpost

Oval M-600, 31.6x400mm

Type: Rigid

Pedals

none

Groupset
Rear Derailleur

Shimano XT SGS Shadow Top normal 10sp

Front Derailleur

Shimano XT, 34.9mm

Crank

Shimano XT Hollow Tech II w/Integrated spindle, 24/32/44T

Shifters

Shimano XT Rapid Fire, 30-speed

Cassette

Shimano SLX 11-36T 10sp

Chain

Shimano HG-74

Brakes

Shimano SLX Hydraulic Disc, 203/180mm Centerlock rotor

Type: Shimano SLX Hydraulic Disc

Brake Levers

Shimano SLX Hydraulic Brake Levers

Wheels
Rims

Shimano SLX Centerlock, 32H hubs, w/15mm front thru-axle with Alex XD-Lite Double Wall rims

Tires

Continental Mountain King 26x2.2" Foldable
