Today’s Deals2021 Forestal
Hydra Diode

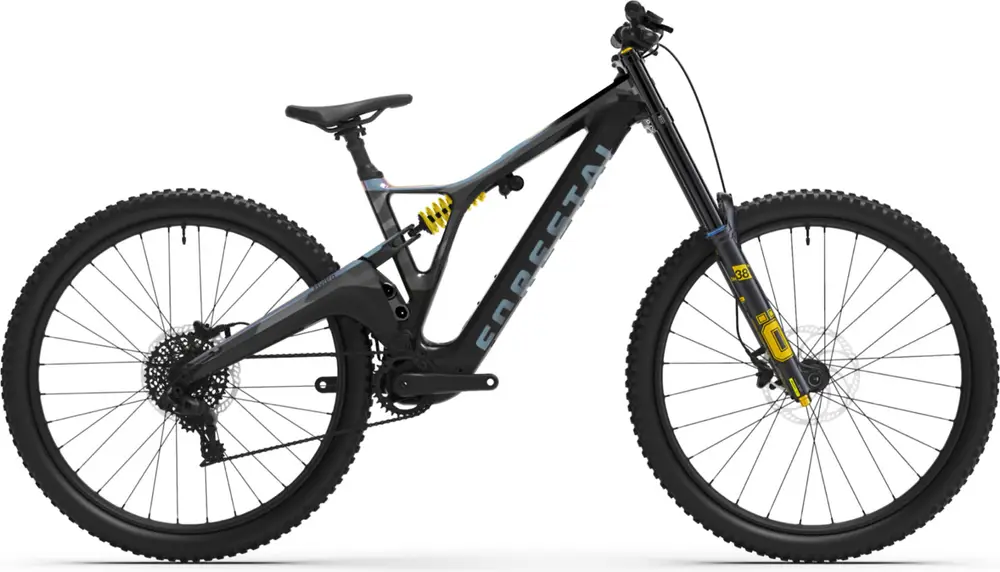

A 29″ carbon frame full suspension downhill e-bike with high-end components.
Compare the full range
| Frame | Carbon |
|---|---|
| Suspension | Full, 170 / 180mm |
| Fork | Öhlins DH38 M.1 |
| Shock | Öhlins |
| Wheels | 29″ Carbon |
| Drivetrain | 1 × 11 |
| Groupset | X1 |
| Motor | Forestal 250W 60Nm mid-drive |
| Battery | Forestal 350Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2021 · James Smurthwaite
Forestal adds two new e-bikes to their lineup, including a 170mm DH machine.
| Frame | Carbon Fiber |
|---|---|
| Fork | Öhlins DH 38 M.1, Boost 20x110mm, 46mm offset, rebound/low-speed compression/high-speed compression Travel: 180mm |
| Shock | Öhlins TTX Coil, metric 230x65mm, external rebound/high and low-speed compression, Spring rates: 320 lbs (size S), 388 lbs (size M), 434 lbs (size L), 480 lbs (size XL) Travel: 170mm |
| Headset | Acros Integrated, ZS 56 top / ZS 56 bottom, internal cable routing, stainless steel bearings |
| Stem | Forestal X PP Direct Mount DH, 31.8mm, 7075 T6 aluminum CNC |
| Handlebar | Forestal Oxydon C 780mm, 31.8mm diameter, 4° upsweep, 6° backsweep, rise 15mm, Toray T700 and T800 carbon |
| Saddle | fi'zi:k Aidon X3 E-MTB, fiber reinforced nylon/S-alloy rails, 255 x 145mm |
| Seatpost | Crankbrothers Highline 7, 125mm length (size S), 150mm length (sizes M-L), 170mm length (size XL), BikeYoke Triggy X remote, custom Forestal with Shiftmix Type: Dropper |
| Pedals | N/A |
| Grips | Production Privee CR35, Forestal x Production Privee edition, 2-position adjustable (tour/race) |
| Rear Derailleur | SRAM X1, 11-speed, X-Actuation, long cage |
|---|---|
| Front Derailleur | N/A |
| Crank | Praxis Carbon, 170mm Q-factor, ISIS drive, 160mm length (sizes S-M), 165mm length (sizes L-XL) |
| Shifters | SRAM X1, 11-speed, X-Actuation |
| Cassette | SRAM XG-1150, 10-42 tooth, 11-speed, XD driver |
| Chain | SRAM, 11-speed, PowerLock |
| Chain Guide | Direct mount top guide |
| Brakes | Braking, 9mm cartridge, 26mm aluminum pistons, carbo-metallic pads, 203mm rotors Type: Hydraulic Disc |
| Brake Levers | Braking, CNC machined, contact point adjust |
| Rims | Crankbrothers Synthesis Carbon DH 11 wheelset, 31.5mm inner width front / 29.5mm inner width rear |
|---|---|
| Spokes | Crankbrothers Synthesis Carbon DH 11 wheelset, Sapim E-Light front / Sapim Strong rear |
| Front Hub | Crankbrothers Synthesis Carbon DH 11 wheelset, Industry Nine 1/1, Boost, 6-bolt, XD driver |
| Rear Hub | Crankbrothers Synthesis Carbon DH 11 wheelset, Industry Nine 1/1, Boost, 6-bolt, XD driver |
| Tires | Front: Panaracer Romero 29" x 2.4" ST 3Comp, super tough, tubeless ready, triple compound, puncture resistant wall, Rear: Panaracer Romero 29" x 2.4" ST 3Comp, super tough, tubeless ready, triple compound, puncture resistant wall |
| Motor | Forestal EonDrive, 250W, 60Nm, IP67, 1.95kg, 165 x 105 x 147mm |
|---|---|
| Battery | Forestal Aurora Performance, 52V, integrated, rapid charge, 1.8kg, 350 x 72 x 50.5mm |
| Remote | Forestal Smart Trigger, 3 buttons, battery and assistance LED indicators, Forestal Smart Dashboard, 3.2" integrated HD transflective touch screen, all-conditions resistant |
| Display | Forestal Smart Trigger, 3 buttons, battery and assistance LED indicators, Forestal Smart Dashboard, 3.2" integrated HD transflective touch screen, all-conditions resistant |
