2023 · FocusSAM² 6.7

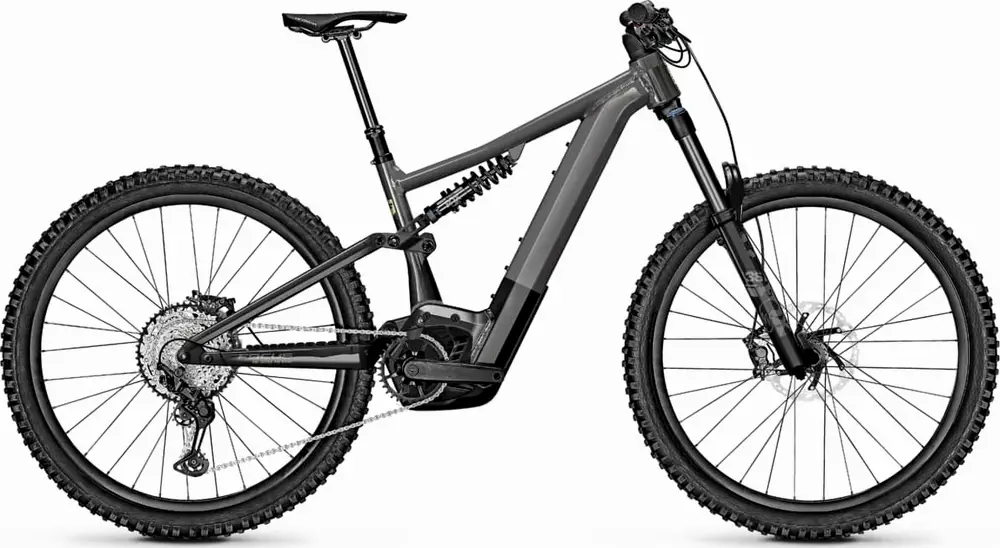

A 700c aluminum frame full suspension enduro e-bike with high-end components. Compare the full range
| MSRP | €5,499 (about $5,957) |
|---|---|
| Weight | 55.1 lbs |
| Suspension | Full |
| Travel | 170mm rear, 180mm front |
| Frame | Aluminum |
| Fork | Suntour DUROLUX36 |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | NX Eagle, SX Eagle |
| Motor | Bosch 250W 85Nm mid-drive |
| Battery | 625Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more. Learn more →
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
Rudolf FischerMar 2023
FOCUS present the eMTBs for the 2023 season with new aluminium frames and redesigned F.O.L.D. rear triangle kinematics.
Luke MarshallJun 2021
Gravity-fuelled action with plenty of pedalling assistance
Option to run a 29er, 650b or mullet (mixed size) wheel setup adds versatility
Frame sizing and geometry
It'll take whatever punishment you can give it
At 26kg, there's a lot of bike to lift and move around
| Frame | 7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. Gen2, 148x12 mm thru axle, internal cable routing, post mount 203 mm Colors: Atlasgreymatt Blackmatt / #8c8888/#1e1e1e; Rustorange Rustbrown / #D57133/#bf5149 |
|---|---|
| Fork | SR Suntour Durolux 38, RC2 29, 110x15 mm, 44 mm rake |
| Rear Shock | Rock Shox Deluxe Select, 230/65 mm, hardware: 25,0 x 8.0 mm, no Bushing |
| Bottom Bracket | Integrated in Drive Unit |
| Headset | ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset |
| Stem | FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium |
| Handlebar | Aluminium, 800 mm, rise: 30 mm, backsweep: 9° |
| Saddle | Selle Royal Groove |
| Seatpost | Post Moderne dropper post PM-214, 34.9 mm |
| Rear Derailleur | SRAM NX Eagle, 12-speed |
|---|---|
| Crank | Samox EC40 ISIS |
| Shifters | SRAM SX Eagle, 12-speed |
| Cassette | SRAM PG-1230 NX Eagle, 12-speed |
| Chain | SRAM SX Eagle, 12-speed |
| Brakes | SRAM DB8, 4-piston, hydraulic disc brake |
| Brake Levers | SRAM DB8, 4-piston, hydraulic disc brake |
| Rims | RODI TRYP30, 30-622 |
|---|---|
| Front Hub | Novatec D041, 15x110 mm thru axle |
| Rear Hub | Novatec D462, 12x148 mm |
| Tires | Maxxis Minion DHF, EXO, 63-622 |
| Motor | Bosch Performance CX Gen4, 85 Nm, 250 W |
|---|---|
| Battery | 625 Wh |
| Remote | Bosch LED Remote |
