Today’s Deals2022 Focus

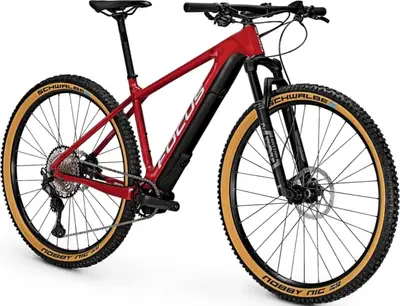

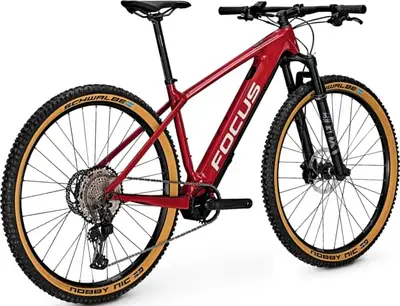

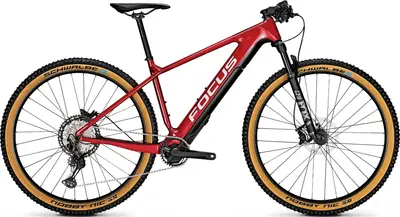

RAVEN² 9.8
A 29″ carbon frame hardtail crosscountry e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
€4,999($5,813)| Weight | 35.9 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Hardtail, 100mm |
| Fork | Fox Rhythm Float 32 |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT |
| Motor | Fazua 250W 60Nm mid-drive |
| Battery | 250Wh |
| Brakes | Shimano SLX Hydraulic Disc |
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Mar 2023 · Matt Beer
Focus Bikes’ new Raven hardtail is a relaxed carbon cross-country bike that sits atop a 120mm fork and brings a downtube storage box to the table, or internal compartment solution (I.
Mar 2023 · Jessie-May Morgan
The 2023 Focus Raven gets a down-country overhaul with a 120mm travel fork, a 66.5 degree head tube angle, and a frame storage compartment
| Frame | F.I.T. Technology Carbon frame, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm Color: Rood / #Da291c |
|---|---|
| Fork | FOX 32 Float Rhythm 29, Grip Remote, 110x15 mm, 44 mm rake, 100 mm travel Travel: 100mm Spring Type: Air |
| Bottom Bracket | - |
| Headset | Acros AIX-322, tapered, IS 42/286-IS52/40 |
| Stem | BBB Rider BHS-109, 31.8mm, 7° |
| Handlebar | BBB Horizon BHB-108, aluminium, flatbar, 720mm, backsweep: 9degree |
| Saddle | FOCUS Race SL |
| Seatpost | BBB Deluxe, Aluminium, 27,2mm, 350mm Type: Rigid |
| Rear Derailleur | Shimano Deore XT M8100, 12-speed |
|---|---|
| Crank | FSA CK-746, aluminium |
| Shifters | Shimano Deore XT M8100, 12-speed |
| Cassette | Shimano SLX M7100, 12-speed |
| Chain | Shimano SLX CN-M7100, 12-speed |
| Brakes | Shimano SLX M7100 Type: Shimano SLX Hydraulic Disc |
| Brake Levers | Shimano SLX M7100 |
| Rims | RODI TRYP25, 25-622 |
|---|---|
| Front Hub | Novatec D041, 15x110 mm |
| Rear Hub | Novatec D162 Disc, 12x148 mm |
| Tires | Schwalbe Nobby Nic Evo Addix Speedgrip, 2.25 |
| Motor | FAZUA evation, 60 Nm, 250 W |
|---|---|
| Battery | 250 Wh |
| Display | FAZUA evation 1.0 remote |
First added April 4
Last updated April 12
Not listed for 1,508 days
