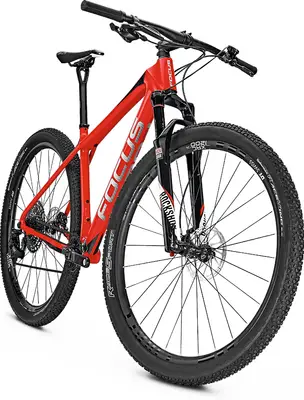

2018 Focus
RAVEN MAX Team
A 29″ carbon frame hardtail crosscountry bike with ultra high-end components.
Compare the full range
| Frame | Carbon |
|---|---|
| Suspension | Hardtail, 100mm |
| Fork | RockShox SID |
| Wheels | 29″ Carbon |
| Drivetrain | 1 × 12 |
| Groupset | XX1 Eagle |
| Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2016 · Jon Woodhouse
An insanely fast cross-country machine for those willing to forgo any comfort in the name of speed
Jul 2015
German brand Focus enters the US mountain bike market with a carbon 29er hardtail, carbon trail bike and carbon enduro racer. - Mtbr.com
Jun 2015 · Martin Stöckl
Can a XC-Hardtail be fun as a everyday-bike on the local trails? We tried to find out riding the FOCUS Raven 3.0 Factory. Here's the review!
| Frame | MAX technology Carbon frame, PF30 BB, 142x12 mm through axle, internal cable routing, Post Mount 160 mm BB Standard: PF30, Press Fit |
|---|---|
| Fork | RockShox SID RL WorldCup, OneLoc remote, 100x15 mm QR, 100 mm travel Travel: 100mm |
| Bottom Bracket | PF30, press-fit |
| Stem | BBB, aluminium, 31.8mm |
| Handlebar | BBB, carbon, flatbar, 720mm, rise: 0mm, backsweep: 9degree |
| Seatpost | BBB, carbon, 27,2 mm, 394 mm Type: Rigid |
| Rear Derailleur | FocusTempRearDerailleur045 |
|---|---|
| Crank | 1x |
| Shifters | SRAM XX1 Eagle |
| Brakes | SRAM Level Ultimate, 160 mm / 160 mm Type: Hydraulic Disc |
| Rims | DT Swiss XRC 1200, 622-25, 142x12 mm / 100x15 mm |
|---|---|
| Tires | Continental Race King 2.2 RS, foldable |
