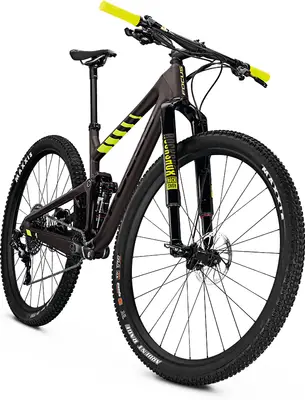

O1E FACTORY
A 29″ carbon frame full suspension trail bike with high-end components.
Compare the full range
Frame | Carbon |
---|---|
Suspension | Full, 120mm front |
Fork | RockShox |
Shock | RockShox Monarch XX |
Wheels | 29″ Aluminum |
Drivetrain | 1 × 12 |
Groupset | GX Eagle |
Brakes | Hydraulic Disc |
Seatpost | Dropper |
For This Bike
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2016
Two new bikes are on their way ; the O1E (one) a new 100mm travel 29er and the 140mm travel JAM. Both use the new F.O.L.D. suspension design. The two new bikes are also totally fresh platforms, filling the gaps between the existing Focus Raven, Spine and SAM introduced in 2015 to provide great choice from …
Frame | Carbon frame, 100 mm F.O.L.D. kinematic, PF30 BB, 148x12 mm through axle, internal cable routing, Post Mount 160 mm BB Standard: PF30, 100mm, Press Fit |
---|---|
Fork | RockShox RS1 RLC, crown adjust, predictive steering, 15 mm QR, 120 mm travel Travel: 120mm |
Shock | RockShox Monarch XX, 165/38, hardware: shaft22,2x8 mm/body22,2x8 mm, custom tune [HVI mm 380 125] |
Bottom Bracket | PF30, 100mm, press-fit |
Stem | BBB, aluminium, 31.8mm |
Handlebar | BBB, carbon, flatbar, 720mm, rise: 0mm, backsweep: 9degree |
Seatpost | KindShock Zeta, 31,6mm, 437 mm, 50mm travel, remote for 1by only Type: Dropper |
Rear Derailleur | SRAM GX Eagle, 12-speed |
---|---|
Crank | 1x |
Shifters | SRAM GX Eagle |
Brakes | SRAM Level TL, 160 mm / 160 mm Type: Hydraulic Disc |
Rims | DT Swiss M1650, 622-25, 148x12 mm / 110x15 mm, predictive steering |
---|---|
Tires | Ardent Race 2.2 TR/ EXO, foldable |
Last updated April 22
Not listed for 1,825 days
