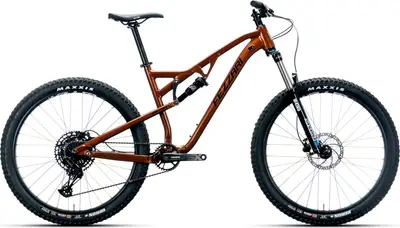

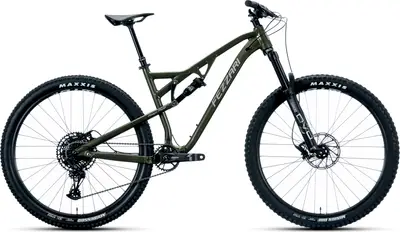

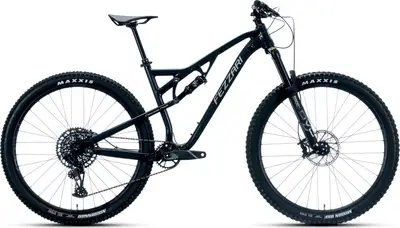

Cascade
A 29″ aluminum frame full suspension trail bike with high-end components.
Manufacturer Price
$2,999Frame | Aluminum |
---|---|
Suspension | Full, 130 / 140mm |
Fork | DVO Diamond |
Shock | Fox Float DPS Performance |
Wheels | 29″ Aluminum |
Drivetrain | 1 × 12 |
Groupset | GX Eagle, Truvativ Descendant |
Brakes | Hydraulic Disc |
Seatpost | Dropper |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2022 · Mike Levy
More middle-of-the-road than leading the pack, but that could be just the ticket for many riders.
Great components, DVO fork
Not a specialist, but decent at everything
Best suited to slow speed trails
Doesn't feel as modern as some other bikes
Decent but not great at everything
Not confidence inspiring at speed
Apr 2022 · Mike Levy
The classic trail bike
Great components, DVO fork
Not a specialist, but decent at everything
Best suited to slow-speed trails
Doesn’t feel as modern as some other bikes
Decent but not great at everything
Not confidence inspiring at speed
Frame | Fezzari Racing Design Alloy, 130mm travel, full sealed cartridge bearings, replaceable derailleur hanger, tapered headtube, water bottle bosses BB Standard: BSA, Threaded Tire Clearance: 2.5" |
---|---|
Fork | DVO Diamond D1, 140mm travel, 1.5 inch tapered steer tube, 110mmx15mm boost thru axle, black Travel: 140mm |
Shock | Fox Float DPS, Performance Series, 3 Position Lever with Evol SV aircan, matte black Travel: 130mm |
Bottom Bracket | SRAM DUB, English Thread |
Headset | FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered |
Stem | Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit |
Handlebar | Fezzari FRD Charger35, alloy, 35mm clamp, 780mm wide, 25mm riser, 9 degree back-sweep, 5 degree upsweep |
Saddle | WTB Volt Sport |
Seatpost | X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout) Type: Dropper |
Pedals | Available Separately |
Rear Derailleur | SRAM GX Eagle 12-Speed |
---|---|
Front Derailleur | N/A |
Crank | Truvativ Descendant DUB 6K Aluminum Eagle Crankset |
Shifters | SRAM GX Eagle Trigger 12-Speed |
Cassette | SRAM XG-1275 GX Eagle, 10-52t, 12-speed |
Chain | SRAM NX Eagle 12-speed |
Brakes | SRAM G2 R Hydraulic Disc, SRAM Centerline Rotors, 180mm/160mm F/R Type: Hydraulic Disc |
Rims | Stans Flow 29er S2, Tubeless Ready, 32 hole |
---|---|
Spokes | 1.8mm (15g) black stainless, brass nipples |
Front Hub | Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle, XD |
Rear Hub | Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle, XD |
Tires | Front: Maxxis Minion DHF 29x2.5 WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Aggressor 29x2.5 Exo/Tubeless Ready 60 TPI |
Last updated March 2
