2020 Felt

BROAM 60

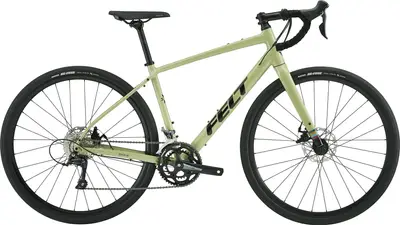

An aluminum frame gravel bike with mid-range components and mechanical disc brakes.
Compare the full range

MSRP$949
Weight24.5 lbs
FrameAluminum
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain2 × 8
GroupsetSora, Claris
BrakesMechanical Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

BROAM 60

36 mph

Similar Bikes

Highest gear

(descending)

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Felt Adventure Road Disc Superlite custom butted aluminum, smooth welded construction, 68mm BSA threaded bottom bracket shell, 12 x 142mm with Syntace style thru axle, flat mount disc brake standard, replaceable rear derailleur hanger, internal mechanical cable routing

BB StandardBSA, 68mm, Threaded

Fork

Felt Adventure Gravel UHC Advanced carbon fiber monocoque construction, ControlTaper 1.125" - 1.5" aluminum steerer tube, flat mount disc standard, 12 x 100mm thru axle with mid-mount rack and fender mounts

Bottom Bracket

Sealed cartridge, BSA threaded, square taper axle, 68 x 118mm

Headset

FSA integrated sealed cartridge bearing with Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), Felt top cap and aluminum bolt, No.42, 1.125 - 1.5"

Stem

Devox VariableAngle, ±8¡/±16¡ rise, ¯31.8mm, 47cm: 80mm, 51cm: 90mm, 54 - 56cm: 100mm, 58cm: 110mm, 61cm: 120mm

Handlebar

Devox adventure bend, 86mm reach, 130mm drop, 8¡ flare, ¯31.8mm, 47cm: 400mm, 51cm: 420mm, 54cm: 440mm, 56 - 61cm: 460mm

Saddle

SR Essenza Blackstar Gel

Seatpost

Devox Lite Road, ¯27.2mm x 330mm length

TypeRigid

Groupset
Rear Derailleur

Shimano Sora ST-R3000 long cage

Front Derailleur

Shimano Claris clamp-on, ¯31.8mm

Crank

FSA Tempo Adventure, 46/30T, 47cm: 165mm, 51cm: 170mm, 54 - 56cm: 172.5mm, 58 - 61cm: 175mm

Shifters

Shimano Claris R2000 8-speed

Cassette

8-speed, 12-34T

Chain

KMC 8-speed

Brakes

Tektro MD-C550 dual piston flat mount disc, 160mm rotor

TypeMechanical Disc

Brake Levers

Shimano Claris R2000

Wheels
Rims

Devox 2.1 Disc, tubeless compatible 21mm inner width, 23mm depth

Spokes

2.0mm ED Black

Front Hub

Devox GR.1 Disc, 12 x 100mm thru axle, 6-bolt, 28H

Rear Hub

Devox GR.1 Disc, 11-speed, 12 x 142mm thru axle, 6-bolt, 28H

Tires

Maxxis Refuse with Silkworm, 700 x 40c
