2019 Felt
REDEMPTION-E 30

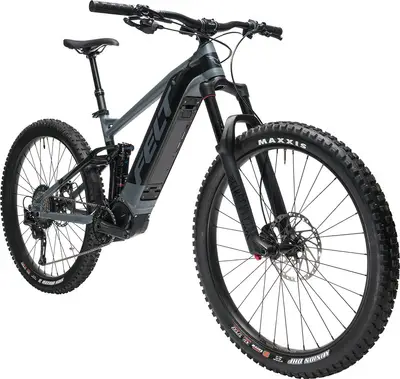

A 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range components.
Compare the full range
| MSRP | $5,799 |
|---|---|
| Weight | 51.2 lbs |
| Frame | Aluminum |
| Suspension | Full, 150 / 150mm |
| Fork | RockShox Yari RC |
| Shock | RockShox Deluxe R |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | XT, SLX |
| Motor | Shimano 250W 70Nm mid-drive |
| Battery | Shimano 500Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Felt All Mountain, 150mm travel, Shimano e-Bike specific, double-butted 6061 aluminum, fully integrated down tube, ControlTaper integrated head tube, post disc mount, replaceable derailleur hanger, 12 x 148mm Syntace style thru axle |
|---|---|
| Fork | Rock Shox Yari RC Solo Air, 150mm travel, 15 x 110mm Boost, E-Bike specific Travel: 150mm Spring Type: Air |
| Shock | Rock Shox Deluxe R, Debonair, 185 x 52.5mm Trunnion Travel: 150mm Spring Type: Air |
| Bottom Bracket | Shimano e8000 MTB drive, 250W output, 20 mph |
| Headset | FSA sealed cartridge bearings, semi-integrated, No.57, 1.125 - 1.5" |
| Stem | Devox, ±7° rise, Ø31.8mm with Cr-Mo bolts, 35mm |
| Handlebar | Devox E-MTB 6061 butted riser, Ø31.8mm, 25mm rise, 9° sweep, 780mm wide, custom internal wire routing |
| Saddle | WTB Volt Race, Cr-Mo rails |
| Seatpost | KS LEV Integra dropper with South Paw, Ø30.9mm, SM: 100mm travel, MD: 125mm travel, LG/XL: 150mm travel Type: Dropper |
| Pedals | None included |
| Grips | Devox Pauley Grip |
| Rear Derailleur | Shimano XT, 11-speed, Shadow Plus, long cage |
|---|---|
| Crank | Shimano E8050, 34T, SM/MD/LG: 170mm, XL: 175mm |
| Shifters | Shimano SLX M7000, 1x11 |
| Cassette | Shimano SLX, 11-speed, 11-46T |
| Chain | KMC X11-E, 11-speed |
| Chain Guide | MRP E-Guide |
| Brakes | Shimano SLX M7000 hydraulic disc, 203mm rotor Type: Hydraulic Disc |
| Brake Levers | Shimano |
| Rims | WTB Scraper i35, tubeless compatible, 35mm inner width |
|---|---|
| Spokes | 2.0mm butted stainless steel |
| Front Hub | Shimano Deore, 15 x 110mm Boost thru axle, Center lock, 32H |
| Rear Hub | Shimano Deore, 12 x 148mm Boost thru axle, Center lock, 32H |
| Tires | Maxxis Minion DHF front, Maxxis High Roller 2 rear, 3C/EXO, tubeless ready, 27.5 x 2.8" |
| Motor | Shimano E8020, 500Wh integrated |
|---|---|
| Battery | Shimano E8020, 500Wh integrated |
