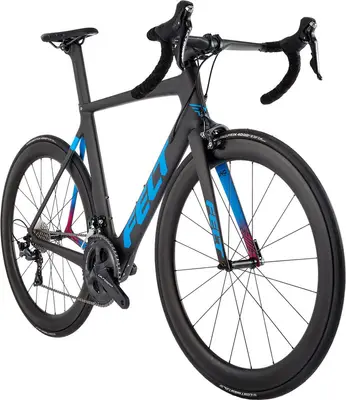

2019 Felt
AR3
A carbon frame aero bike with high-end components and rim brakes.
Manufacturer Price
$4,399| Weight | 17.0 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Carbon |
| Drivetrain | 2 × 11 |
| Groupset | Ultegra |
| Brakes | Rim |
For This Bike
Feb 2016 · Robin Wilmott
The smooth chassis has aged a little, but is let down by the wheelset and handlebar. Buy if you want a thoroughly decent aero road bike at a sensible price, and are willing to upgrade
Frameset, handling and groupset
Inline brake cable release position
| Frame | Felt Aero Road UHC Performance carbon fiber, MMC with InsideOut construction, BSA threaded bottom bracket shell, carbon fiber dropouts, replaceable rear derailleur hanger, internal mechanical or internal electronic cable routing Shock: BB Standard: BSA, 68mm, Threaded |
|---|---|
| Fork | Felt Aero Road UHC Advanced carbon fiber monocoque construction, AeroTaper 1.125" - 1.25" carbon fiber steerer tube, integrated crown race, crown, blades and dropouts |
| Bottom Bracket | Shimano Hollowtech BSA threaded |
| Headset | FSA integrated sealed cartridge bearing with Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), No. 382/DJ, 1.125" - 1.25" |
| Stem | Devox, -7° rise, Ø31.8mm, 48cm: 80mm, 51cm: 90mm, 54 - 56cm: 100mm, 58cm: 110mm, 61cm: 120mm |
| Handlebar | Devox Carbon Aero, 80mm reach, 125mm drop, Ø31.8mm, 48 - 54cm: 400mm, 56 - 61cm: 420mm |
| Saddle | Fizik Arione R5 |
| Seatpost | Felt Vibration Reducing Aero Road flip position UHC Advanced carbon fiber with 3T DiffLock Comfort Module internals, 48 - 51cm: 280mm length, 5mm offset, Felt VariMount Aero Road flip position UHC Advanced carbon fiber, 54 - 61cm: 350mm length, 25mm offset Type: Rigid |
| Rear Derailleur | Shimano Ultegra R8000 11-speed short cage |
|---|---|
| Front Derailleur | Shimano Ultegra R8000 braze-on |
| Crank | Shimano Ultegra R8000, 52/36T, 48cm: 165mm, 51cm: 170mm, 54 - 56cm: 172.5mm, 58 - 61cm: 175mm |
| Shifters | Shimano Ultegra R8000 11-speed |
| Cassette | Shimano 11-speed, 11-28T |
| Chain | Shimano 11-speed |
| Brakes | Shimano Ultegra R8000 dual pivot caliper with brake pads for carbon rims Type: Rim |
| Brake Levers | Shimano Ultegra R8000 |
| Rims | Devox 50 carbon, 17.6mm inner width, 50mm depth |
|---|---|
| Spokes | 2.0mm stainless steel with aluminum nipples |
| Front Hub | Devox ARH1, sealed cartridge bearing, 100mm QR, 20H |
| Rear Hub | Devox ARH1, sealed cartridge bearing, 11-speed, 130mm QR, 24H |
| Tires | Continental Grand Prix 4000 S II folding, 700 x 25c |
