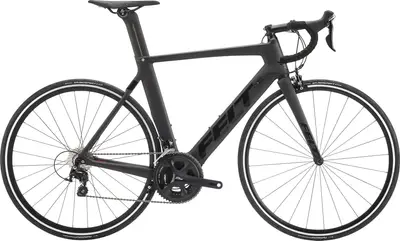

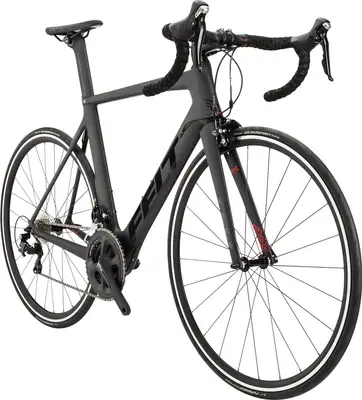

2018 Felt
AR5
A carbon frame aero bike with upper mid-range components and rim brakes.
Manufacturer Price
$2,499| Weight | 17.9 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 11 |
| Groupset | 105 |
| Brakes | Rim |
For This Bike
| Frame | Felt Aero Road UHC Performance carbon fiber, MMC with InsideOut construction, BSA threaded bottom bracket shell, carbon fiber dropouts, replaceable rear derailleur hanger, internal mechanical or internal electronic cable routing BB Standard: BSA, 68mm, Threaded |
|---|---|
| Shock | n/a |
| Bottom Bracket | Shimano Hollowtech BSA threaded |
| Headset | FSA integrated sealed cartridge bearing with Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), No. 382/DJ, 1.125" - 1.25" |
| Stem | Devox, ±7° rise, Ø31.8mm, 48cm: 80mm --- 51cm: 90mm --- 54 - 56cm: 100mm --- 58cm: 110mm --- 61cm: 120mm |
| Handlebar | Devox Aero Road VariableShape, 80mm reach, 130mm drop, Ø31.8mm, 48 - 54cm: 400mm --- 56 - 61cm: 420mm |
| Saddle | Fizik Arione R7 |
| Seatpost | Felt Vibration Reducing Aero Road flip position UHC Advanced carbon fiber with 3T DiffLock Comfort Module internals, 48 - 51cm: 280mm length, 5mm offset --- 54 - 61cm: 350mm length, 25mm offset Type: Rigid |
| Pedals | n/a |
| Grips | Felt VelvetGel tape with 3M reflective base with reflective Felt Bubble-Tech F-Wing bar end plugs |
| Rear Derailleur | Shimano 105 11-speed short cage |
|---|---|
| Front Derailleur | Shimano 105 braze-on |
| Crank | Shimano 105, 52/36T, 48cm: 165mm -- 51cm: 170mm --- 54 - 56cm: 172.5mm --- 58 - 61cm: 175mm |
| Shifters | Shimano 105 11-speed |
| Cassette | Shimano 11-speed, 11-28T |
| Chain | Shimano 11-speed |
| Chain Guide | n/a |
| Brakes | Rim Type: Rim |
| Brake Levers | Shimano 105 |
| Rims | Devox 30; front: 17mm inner width, 27mm depth, --- rear: 17mm inner width, 30mm depth |
|---|---|
| Spokes | 2.0 / 1.5 x 2.3mm butted aero stainless steel with aluminum nipples |
| Front Hub | Devox ARH2, sealed cartridge bearing, 100mm QR, 24H |
| Rear Hub | Devox ARH2, sealed cartridge bearing, 11-speed, 130mm QR, 28H |
| Tires | Grand Sport Race folding, 700 x 23c |
