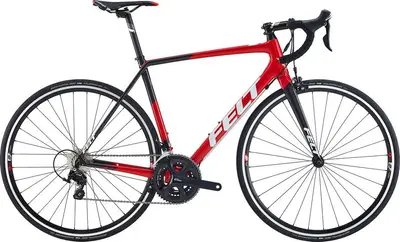

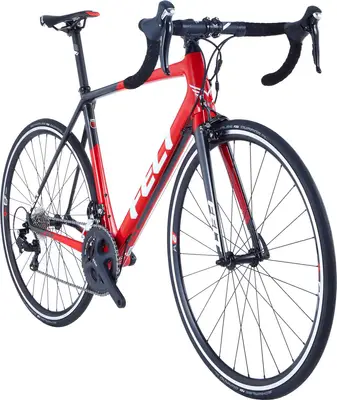

2017 Felt
FR5
A carbon frame race bike with upper mid-range components and rim brakes.
Manufacturer Price
$1,999| Weight | 17.7 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 11 |
| Groupset | 105, Tiagra |
| Brakes | Rim |
For This Bike
4'11" – 5'7"
5'5" – 5'9"
5'7" – 5'11"
5'9" – 6'2"
6'0" – 6'4"
6'1" – 6'6"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Felt Race Road UHC Performance carbon fiber, MMC with InsideOut construction, threaded BB, carbon fiber dropouts, replaceable rear derailleur hanger, mechanical (external) or electronic (internal) cable routing BB Standard: BB86/BB92, Press Fit |
|---|---|
| Fork | Felt Race Road UHC Advanced carbon fiber monocoque construction, ControlTaper 1.125" - 1.5" carbon fiber steer tube with integrated crown race, crown, blades and dropouts |
| Shock | n/a |
| Bottom Bracket | Token For BB386 Frame with Shimano Crankset |
| Headset | FSA NO.38/42, 1.125" - 1.5" sealed cartridge bearing with Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), 1 x 10mm + 2 x 5mm PC headset spacers, Felt compression device, carbon fiber top cap and aluminum bolt |
| Stem | Felt SuperLite, ±7° rise, Ø31.8mm 48cm = 80mm 51cm = 90mm 54 - 56cm = 100mm 58cm = 110mm 61cm = 120mm |
| Handlebar | Felt SuperLite Road, short 65mm reach, 125mm drop, Ø31.8mm 48cm = 380mm 51cm = 400mm 54 - 56cm = 420mm 58 - 61cm = 440mm |
| Saddle | Prologo Nago Evo T2.0 |
| Seatpost | Felt UHC Performance carbon fiber, Ø27.2mm, 300mm length Type: Rigid |
| Pedals | n/a |
| Grips | Felt Gel Tape |
| Rear Derailleur | Shimano 105 short cage |
|---|---|
| Front Derailleur | Shimano 105 braze-on |
| Crank | Shimano RS500 48cm = 165mm 51cm = 170mm 54 - 56cm = 172.5mm 58 - 61cm = 175mm |
| Shifters | Shimano 105 |
| Cassette | Shimano 11-speed, 11-28T |
| Chain | Shimano 11-speed |
| Chain Guide | n/a |
| Brakes | Shimano dual pivot caliper Type: Rim |
| Brake Levers | Shimano 105 |
| Rims | Felt Road RSL3 (tubeless ready), 22mm Width, 24mm Depth |
|---|---|
| Spokes | 2.0 / 1.8mm butted stainless steel with aluminum nipples |
| Front Hub | Felt R3, sealed bearing, 28H |
| Rear Hub | Felt R3, sealed cartridge bearing, 32H, 11-speed |
| Tires | Schwalbe DURANO RaceGuard, 700c x 25c |
| Fenders | n/a |
|---|
