Front Brake: Tektro FEH-01, 180mm rotor/Rear Brake: Tektro FEH-01, 160mm rotor

SR Suntour XCM-HLO, Preload, Hydraulic lockout, 100mm

Felt XC, butted 6061 aluminum, Hydroform, semi-integrated head tube, replaceable derailleur hanger, IS disc mounts, standard 73mm threaded bottom bracket, 135mm OLD, Ø30.9mm seatpost, Ø34.9mm low clamp front derailleur

Shimano Acera, low clamp 34.9, dual pull, top swing

Felt MTB 6061 butted riser , Ø31.8mm, 15mm rise x 9° sweep (720mm)

Felt butted 6061, dual-bolt micro-adjust 15mm offset, Ø30.9 XS/SM (350MM) MD/LG/XL (400MM)

Felt MTB 3D-forged threadless 1-1/8" +/- 7° rise for Ø31.8mm handlebar w/ black Cr-Mo bolts: XS - 70mm SM/MD - 80mm LG - 90mm XL - 100mm

Schwalbe Rapid Rob Kevlarguard, 27.5 x 2.1

The 7 Seventy delivers all the qualities you look for in a 27.5 hardtail: speed, confidence and control. The light butted aluminum frame is designed to maximize the benefits of this popular wheel size. A reliable Suntour fork, smooth drivetrain and disc brakes all combine to provide a fun and versatile trail bike that’s an exceptional ride.

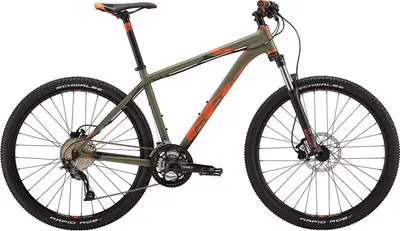

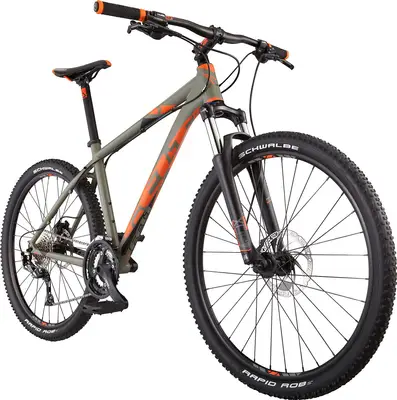

Felt 7 Seventy

A 27.5″ aluminum frame hardtail crosscountry bike with mid-range components.

Weight	31.5 lbs
Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	Suntour XCM
Wheels	27.5″ Aluminum
Drivetrain	3 × 9
Groupset	Alivio, Acera
Brakes	Tektro Hydraulic Disc

Frame	Felt XC, butted 6061 aluminum, Hydroform, semi-integrated head tube, replaceable derailleur hanger, IS disc mounts, standard 73mm threaded bottom bracket, 135mm OLD, Ø30.9mm seatpost, Ø34.9mm low clamp front derailleur BB Standard: BSA, 73mm, Threaded
Fork	SR Suntour XCM-HLO, Preload, Hydraulic lockout, 100mm Travel: 100mm Spring Type: Coil
Shock	n/a
Bottom Bracket	Square taper
Headset	FSA NO.10 w/16.2mm custom cone spacer
Stem	Felt MTB 3D-forged threadless 1-1/8" +/- 7° rise for Ø31.8mm handlebar w/ black Cr-Mo bolts: XS - 70mm SM/MD - 80mm LG - 90mm XL - 100mm
Handlebar	Felt MTB 6061 butted riser , Ø31.8mm, 15mm rise x 9° sweep (720mm)
Saddle	Felt MTB performance
Seatpost	Felt butted 6061, dual-bolt micro-adjust 15mm offset, Ø30.9 XS/SM (350MM) MD/LG/XL (400MM) Type: Rigid
Pedals	Low-profile nylon platform
Grips	Felt Wing Grip, double-density

Rear Derailleur	Shimano Alivio 9-speed, long cage
Front Derailleur	Shimano Acera, low clamp 34.9, dual pull, top swing
Crank	Suntour XCM XS/SM - 170mm MS/LG/XL-175mm
Shifters	Shimano Acera 3x9
Cassette	Sunrace CSM96, 9-speed, 11-36T
Chain	Sunrace M94
Chain Guide	n/a
Brakes	Front Brake: Tektro FEH-01, 180mm rotor/Rear Brake: Tektro FEH-01, 160mm rotor Type: Tektro Hydraulic Disc
Brake Levers	Tektro

Rims	Aluminum double wall, 19mm inside
Spokes	2.0mm stainless
Front Hub	Forged aluminum, 6-bolt, QRx100
Rear Hub	Forged aluminum, 6-bolt, QRx135
Tires	Schwalbe Rapid Rob Kevlarguard, 27.5 x 2.1

2017 Felt7 Seventy

2017 Felt
7 Seventy
