Felt Aero Brake System w/ integrated cover

Shimano Dura-Ace 48 - 51cm = 165mm 54 - 56cm = 170mm 58cm = 172.5mm

Felt Dagger UHC Advanced carbon fiber monocoque construction, 1.25" carbon fiber steer, brake covers, blades, dropouts, crown

Felt Integrated Aero Tri UHC Advanced carbon fiber, MMC w/ InsideOut construction, BB30 & carbon horizontal dropouts w/ integrated chain tensioners, internal cable routing (mechanical compatible)

Felt TTR1 by Novatec, sealed cartridge bearing, 20H

Felt Dagger UHC Ultimate + Nano base bar w/ Felt ƒ-Bend 3-position extensions

FSA IS2 integrated, 1.125" sealed cartridge bearing w/ Felt compression device

Felt TTR0 by Novatec, sealed cartridge bearing, 20H, 11-speed

Felt TTR1 by Novatec carbon fiber, 24mm width, 50mm depth (front); Felt TTR0 by Novatec carbon fiber, 25mm width, 90mm depth (rear)

Felt Vibration Reducing Aero Tri UHC Advanced carbon fiber w/ 3T DiffLock™ Comfort Module internals, 300mm length

Bladed butted aero stainless steel w/ aluminum nipples

From the same mold as the IA, the IA 2 offers the same aerodynamic advantages of the IA FRD. Constructed from Integrated Aero Tri UHC Advanced carbon fiber and equipped with Shimano Di2, the IA 2 is race ready.

Frame	Carbon
Fork	Carbon
Wheels	700c Carbon
Drivetrain	2 × 11 Electronic
Groupset	Dura-Ace Di2
Brakes	Rim

Frame	Felt Integrated Aero Tri UHC Advanced carbon fiber, MMC w/ InsideOut construction, BB30 & carbon horizontal dropouts w/ integrated chain tensioners, internal cable routing (mechanical compatible) BB Standard: BB30, Press Fit
Fork	Felt Dagger UHC Advanced carbon fiber monocoque construction, 1.25" carbon fiber steer, brake covers, blades, dropouts, crown
Shock	n/a
Bottom Bracket	FSA BB30 w/ 24mm spindle reducers
Headset	FSA IS2 integrated, 1.125" sealed cartridge bearing w/ Felt compression device
Stem	Felt Dagger
Handlebar	Felt Dagger UHC Ultimate + Nano base bar w/ Felt ƒ-Bend 3-position extensions
Saddle	ISM Attack Ti
Seatpost	Felt Vibration Reducing Aero Tri UHC Advanced carbon fiber w/ 3T DiffLock™ Comfort Module internals, 300mm length Type: Rigid
Pedals	n/a
Grips	Felt VelvetGel Tape & Dimpled Gel Pads

Rear Derailleur	Shimano Dura-Ace Di2
Front Derailleur	Shimano Dura-Ace Di2 braze-on
Crank	Shimano Dura-Ace 48 - 51cm = 165mm 54 - 56cm = 170mm 58cm = 172.5mm
Shifters	Shimano Tri Di2, 2 Button
Cassette	Shimano 11-speed, 12-25T
Chain	Shimano 11-speed
Chain Guide	n/a
Brakes	Felt Aero Brake System w/ integrated cover Type: Rim
Brake Levers	Shimano Tri Di2, 2 Button

Rims	Felt TTR1 by Novatec carbon fiber, 24mm width, 50mm depth (front); Felt TTR0 by Novatec carbon fiber, 25mm width, 90mm depth (rear)
Spokes	Bladed butted aero stainless steel w/ aluminum nipples
Front Hub	Felt TTR1 by Novatec, sealed cartridge bearing, 20H
Rear Hub	Felt TTR0 by Novatec, sealed cartridge bearing, 20H, 11-speed
Tires	Felt Aero TTR2, 700 x 23c

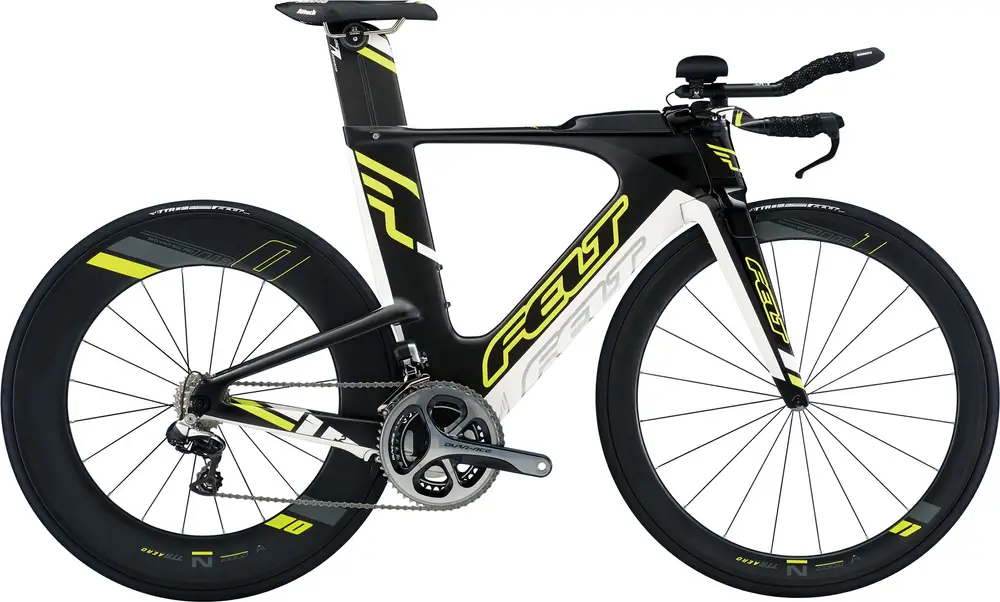

2015 FeltIA 2

2015 Felt
IA 2
