Tektro dual pivot caliper front & rear, stainless hardware

Freewheel 17T x 3/32" Fixed cog 17T x 3/32" w/ lock ring

Forged aluminum, w/ 144mm B.C.D. 51 - 54cm = 165mm 56 - 61cm = 170mm

Felt Urban design, 100% Cr-Mo, 1.125" threadless steerer & oversized straight fork blades, 43mm offset

Felt single speed custom butted 4130 TIG-welded Cr-Mo tubes, butted tapered seatstays w/ horizontal machined Cr-Mo dropouts, horizontal top tube

Aluminum hi-flange, track nuts, 32H, w/ front hub shiner

Felt Urban riser bar, hi-ten, Ø25.4mm, 30mm rise, 540mm wide

FSA 1.125" threadless, aluminum spacer, Felt Tornado aluminum top cap

Aluminum pedal, steel toe clips, leather toe straps

Aluminum, flip-flop threaded fixed / freewheel, hi-flange, track nuts, 32H

Alex DA30 double wall aluminum, 30mm deep V-section aero rim

Felt Urban classic road saddle w/ riveted custom cover & steel rails

Felt aluminum forged, 4-bolt clamp, +/-10° rise, Ø25.4mm 51cm = 90mm 54 - 61cm = 110mm

Nothing says reliability and performance the way steel does. The Brougham uses our 4130 Cro-Moly frame and fork in either a classic Ivy Green or low-profile Stealth Black. For this fixie we spec a flip-flop hub complete with both a freewheel and a fixed cog. We keep the look simple and clean with riser bar, pedals with clips and straps and a front brake—just in case.

Weight	22.7 lbs
Frame	Steel
Suspension	Rigid
Fork	Steel
Wheels	700c Aluminum
Drivetrain	Single-speed
Brakes	Tektro Rim

Frame	Felt single speed custom butted 4130 TIG-welded Cr-Mo tubes, butted tapered seatstays w/ horizontal machined Cr-Mo dropouts, horizontal top tube
Fork	Felt Urban design, 100% Cr-Mo, 1.125" threadless steerer & oversized straight fork blades, 43mm offset
Shock	n/a
Bottom Bracket	Euro sealed bearing, 68mm
Headset	FSA 1.125" threadless, aluminum spacer, Felt Tornado aluminum top cap
Stem	Felt aluminum forged, 4-bolt clamp, +/-10° rise, Ø25.4mm 51cm = 90mm 54 - 61cm = 110mm
Handlebar	Felt Urban riser bar, hi-ten, Ø25.4mm, 30mm rise, 540mm wide
Saddle	Felt Urban classic road saddle w/ riveted custom cover & steel rails
Seatpost	Aluminum micro-adjust, 27.2 x 300mm Type: Rigid
Pedals	Aluminum pedal, steel toe clips, leather toe straps
Grips	Felt BMX flange grips

Rear Derailleur	n/a
Front Derailleur	n/a
Crank	Forged aluminum, w/ 144mm B.C.D. 51 - 54cm = 165mm 56 - 61cm = 170mm
Shifters	n/a
Cassette	Freewheel 17T x 3/32" Fixed cog 17T x 3/32" w/ lock ring
Chain	KMC Z610H 3/32"
Chain Guide	n/a
Brakes	Tektro dual pivot caliper front & rear, stainless hardware Type: Tektro Rim
Brake Levers	Tektro aluminum front & rear

Rims	Alex DA30 double wall aluminum, 30mm deep V-section aero rim
Spokes	14G stainless steel
Front Hub	Aluminum hi-flange, track nuts, 32H, w/ front hub shiner
Rear Hub	Aluminum, flip-flop threaded fixed / freewheel, hi-flange, track nuts, 32H
Tires	Vittoria Randonneur, 700 x 28c

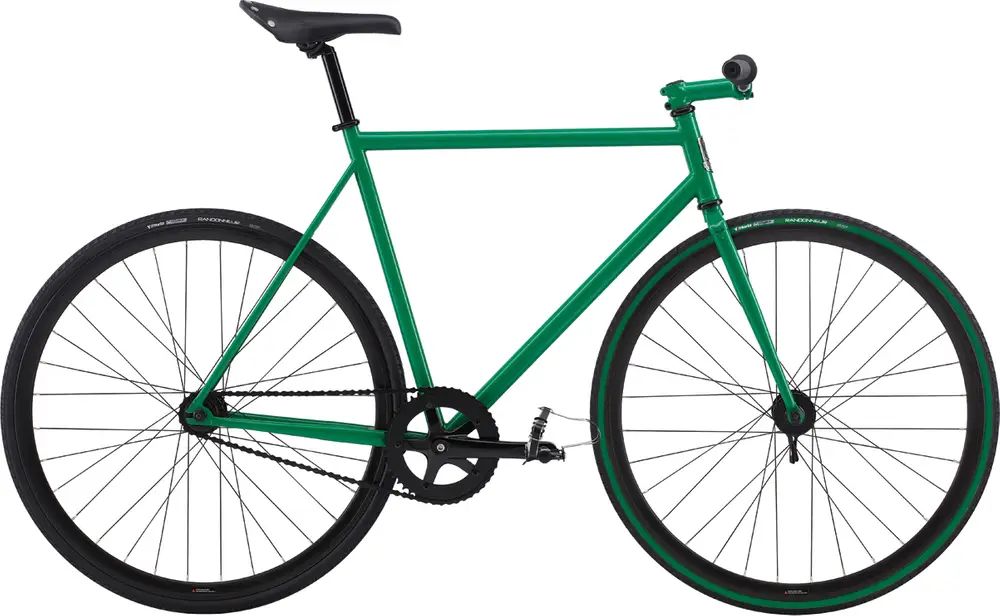

2014 FeltBrougham

2014 Felt
Brougham
