Front: Promax Solve ST 925 hydraulic 2P, 180mm disc, Rear: Promax Solve ST 925 hydraulic 2P, 180mm disc

7 DAYS A WEEK. The LIVING is engineered to be enjoyed all days, whether for city commuting, weekends or holiday. Quality, performance and design are the 3 features of this model. Yamaha's new PW S2 motor provides 75Nm of torque together with "automatic assistance support" that gives the assistance you need in any condition: overpass, uphill or downhill dirt road with a fluid and natural acceleration with every ride. The new "asymmetrical rear chainstay" offers the possibility of installation of a belt instead of the traditional chain" to upgrade the quietness and efficiency of the bicycle. The cushioned seatpost provides extra comfort. The rear light equipped with brake sensor.

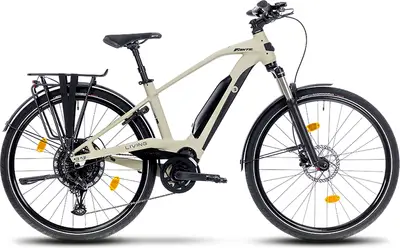

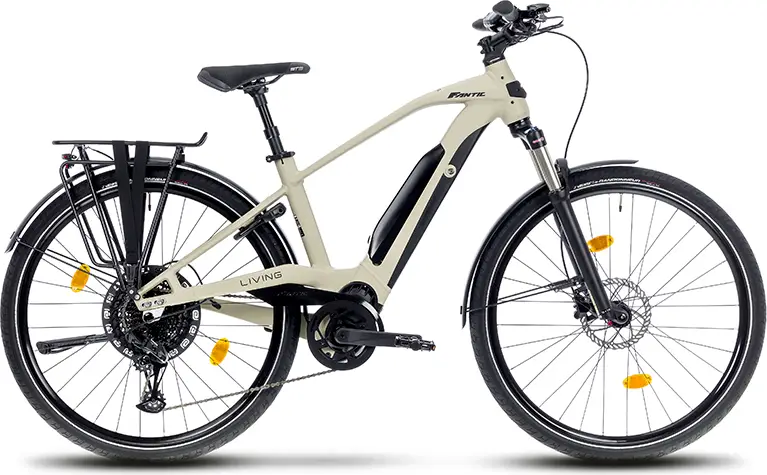

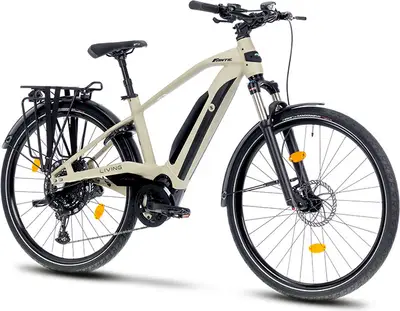

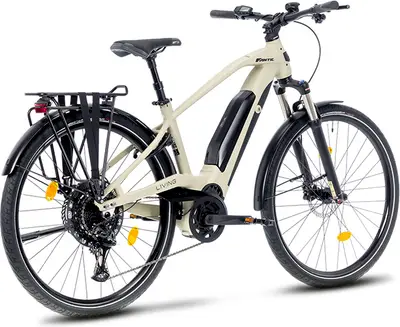

Fantic LIVING

A 29″ aluminum frame commuter e-bike with upper mid-range components and promax hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	Suntour XCR
Wheels	29″ Aluminum
Drivetrain	1 × 12
Groupset	SX Eagle
Motor	Yamaha 75Nm mid-drive
Battery	630Wh
Brakes	Promax Hydraulic Disc

Frame	Aluminium frame. Sizes: S-M-L
Fork	Suntour XCR34, travel 100mm Travel: 100mm
Stem	GBC 70mm
Handlebar	GBC 700mm, Rise 20mm
Saddle	Selle Italia S5 Superflow
Seatpost	Promax Suspended Ø30.9 Type: Rigid
Pedals	Aluminium
Grips	Urban Gist

Rear Derailleur	SRAM SX Eagle
Cassette	SRAM SX, 12V, 11-50
Chain	SRAM SX
Brakes	Front: Promax Solve ST 925 hydraulic 2P, 180mm disc, Rear: Promax Solve ST 925 hydraulic 2P, 180mm disc Type: Promax Hydraulic Disc

Rims	GBC 29"
Front Hub	GBC, 110mm Boost
Rear Hub	GBC, 148mm Boost
Tires	Vittoria E-Randonneur

Motor	Yamaha PW S2, Torque/Coppia: 75Nm
Battery	Fantic, Lithium Ion, 36 Volt, 630Wh
Display	Display B Yamaha

2023 FanticLIVING

2023 Fantic
LIVING
