Fantic Integra, Lithium Ion, 36 Volt, 630Wh

Front: Promax Solve ST 925 hydraulic 2P, 180mm disc, Rear: Promax Solve ST 925 hydraulic 2P, 180mm disc

Yamaha PW S2, Max power: 250 Watt, Torque/Coppia: 75Nm

GBC by Fantic, Rover A:light, Aluminium, 28"

FOR EVERYDAY COMMUTING. Designed and engineered for you, who choose to better your journeys with easily, safely, sustainably, without compromising on quality and design. Yamaha's new PW S2 motor provides 75Nm of torque together with "automatic assistance support" that gives the assistance you need in any condition: overpass, uphill or downhill dirt road with a fluid and natural acceleration with every ride. The new "asymmetrical rear chainstay" offers the possibility of installation of a belt instead of the traditional chain" to upgrade the quietness and efficiency of the bicycle. The cushioned seatpost provides extra comfort. The rear light equipped with brake sensor.

Fantic LIVING EASY

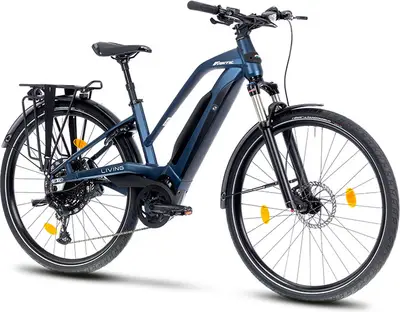

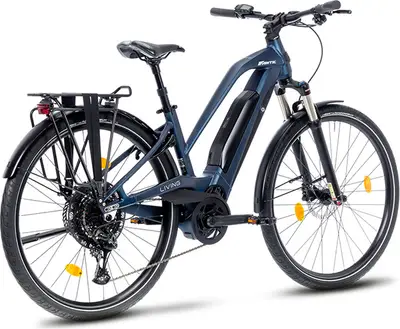

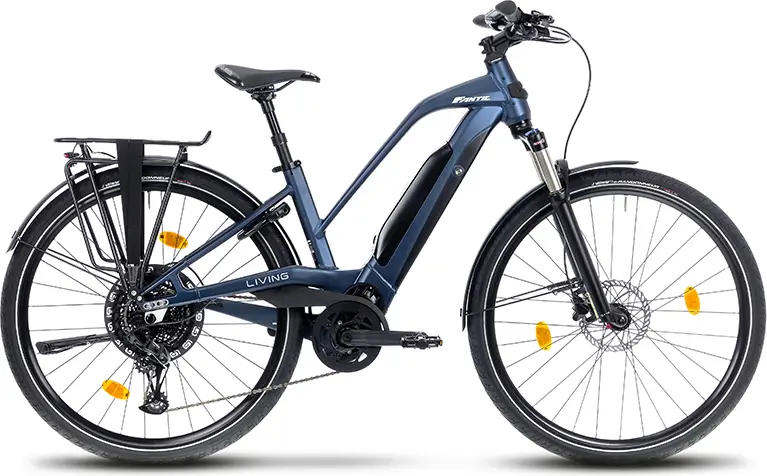

A 29″ aluminum frame commuter e-bike with upper mid-range components and promax hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	Suntour XCR
Wheels	29″ Aluminum
Drivetrain	1 × 12
Groupset	SX Eagle
Motor	Yamaha 250W 75Nm mid-drive
Battery	630Wh
Brakes	Promax Hydraulic Disc

Frame	Aluminium frame. Sizes: S-M-L
Fork	Suntour XCR34, travel 100mm Travel: 100mm
Stem	GBC AHEAD Set over - 70MM
Handlebar	GBC 700mm, Rise 20mm
Saddle	Selle Italia S5 Superflow
Seatpost	Switch Suspended Ø30.9 Type: Rigid
Pedals	Aluminium
Grips	Urban Gist

Rear Derailleur	SRAM SX Eagle 12V - Single Click
Cassette	SRAM SX Eagle 12V 11-50 teeth
Chain	SRAM SX Eagle
Brakes	Front: Promax Solve ST 925 hydraulic 2P, 180mm disc, Rear: Promax Solve ST 925 hydraulic 2P, 180mm disc Type: Promax Hydraulic Disc

Rims	GBC by Fantic, Rover A:light, Aluminium, 28"
Front Hub	GBC, 110mm Boost
Rear Hub	GBC, 148mm Boost
Tires	Vittoria E-Randonneur 50-622

Motor	Yamaha PW S2, Max power: 250 Watt, Torque/Coppia: 75Nm
Battery	Fantic Integra, Lithium Ion, 36 Volt, 630Wh
Display	Display A Yamaha
