Fantic Integra, Lithium Ion, 36 Volt, 630Wh

Front: Promax Solve ST 925 hydraulic 2P, 180mm disc, Rear: Promax Solve ST 925 hydraulic 2P, 180mm disc

Yamaha PW S2, Max power: 250 Watt, Torque/Coppia: 75Nm

GBC by Fantic, Rover A:light, Aluminium, 28"

WITHOUT COMPROMISE. Created for the city,this new e-bike satisfies all daily mobility routing needs inside all the streets of the city, in a sustainable way. Manageable, easy to ride, comfortable and safe. The low step-through makes it easy for everyone to get on. Yamaha's new PW S2 motor provides 75Nm of torque together with "automatic assistance support" that gives the assistance you need in any condition: overpass, uphill or downhill dirt road with a fluid and natural acceleration with every ride. The new "asymmetrical rear chainstay" offers the possibility of installation of a belt instead of the traditional chain to upgrade the quietness and efficiency of the bicycle. The cushioned seatpost provides extra comfort. The rear light equipped with brake sensor.

Fantic LIVING CITY

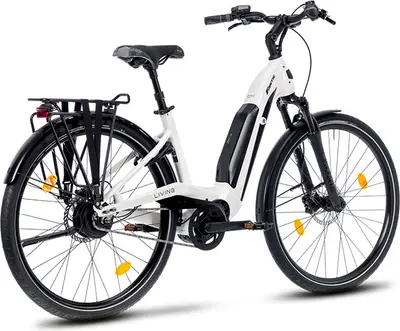

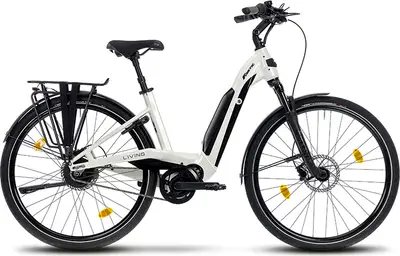

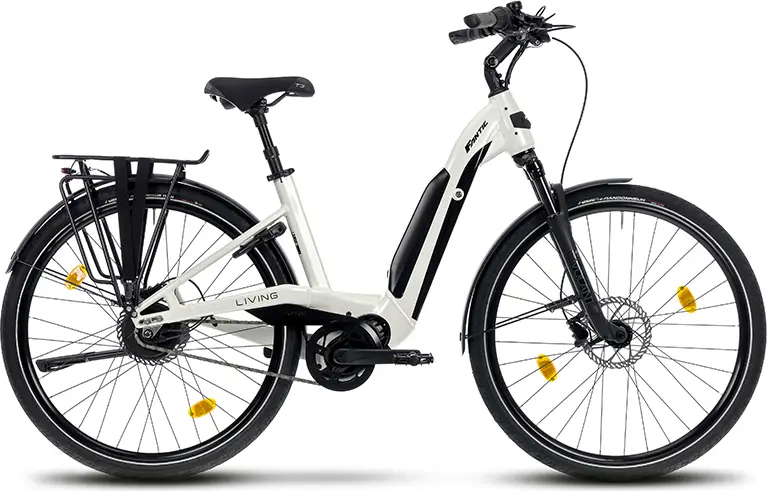

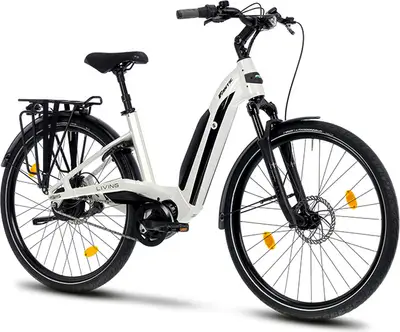

A 29″ aluminum frame commuter e-bike with promax hydraulic disc brakes.

Frame	Aluminum
Suspension	Hardtail, 50mm
Wheels	29″ Aluminum
Motor	Yamaha 250W 75Nm mid-drive
Battery	630Wh
Brakes	Promax Hydraulic Disc

Frame	Aluminium frame. Sizes: S-M-L
Fork	RST Volant, travel 50mm Travel: 50mm Spring Type: Coil
Stem	GBC AHEAD Set over - 70MM
Handlebar	GBC 700mm, Rise 20mm
Saddle	Selle Italia T3 Flow
Seatpost	GBC Suspended Ø30.9 Type: Rigid
Pedals	Aluminium

Rear Derailleur	Enviolo City
Brakes	Front: Promax Solve ST 925 hydraulic 2P, 180mm disc, Rear: Promax Solve ST 925 hydraulic 2P, 180mm disc Type: Promax Hydraulic Disc

Rims	GBC by Fantic, Rover A:light, Aluminium, 28"
Front Hub	GBC, 110mm Boost
Rear Hub	GBC, 148mm Boost
Tires	Vittoria E-Randonneur 50-622

Motor	Yamaha PW S2, Max power: 250 Watt, Torque/Coppia: 75Nm
Battery	Fantic Integra, Lithium Ion, 36 Volt, 630Wh
Display	Display A Yamaha

2022 FanticLIVING CITY

2022 Fantic
LIVING CITY
