Today’s Deals2025 Diamant

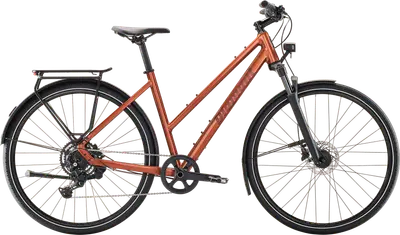

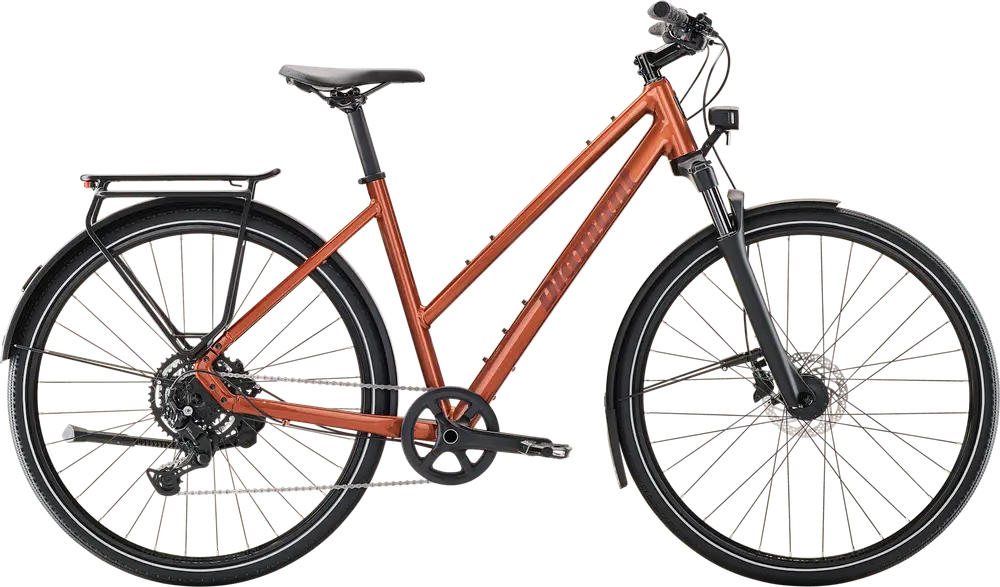

Mahon Trip Core (Midstep)
A 29″ aluminum frame commuter bike with mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€1,199($1,395)| Weight | 35.1 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 75mm |
| Fork | Suntour |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 9 |
| Groupset | CUES |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Mahon model range
View Comparison5'1" – 5'6"
5'4" – 5'10"
5'8" – 6'2"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Alpha Smooth Aluminum, internal cable routing, post-mount disc, replaceable dropouts, belt split, ringlock mount Color: Kupfer Metallic |
|---|---|
| Fork | SR Suntour NCX32, coil spring, 75 mm suspension Travel: 75mm Spring Type: Coil |
| Headset | Integrierter FSA-Steuersatz, gedichtetes Patronenlager, 1 1/8" oben, 1,5" unten |
| Stem | Size: S, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: S, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length; Size: M, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: M, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length; Size: L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
| Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 660 mm width |
| Saddle | Bontrager Commuter Comp |
| Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length Type: Rigid |
| Pedals | VP-536 nylon platform |
| Grips | Size: S, M, L, Bontrager XR Endurance Comp, lock-on; Size: S, M, L, Trek Line Ergonomic Comp, lock-on |

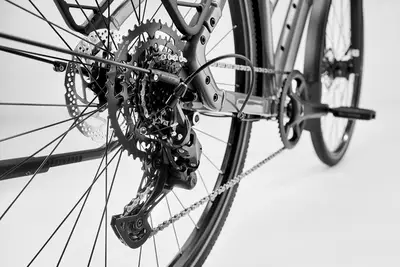

| Rear Derailleur | Shimano CUES U4000 |
|---|---|
| Crank | Size: S, M, Prowheel alloy, 40T narrow-wide ring, 170 mm length; Size: L, Prowheel alloy, 40T narrow-wide ring, 175 mm length |
| Shifters | Shimano U4000, 9-speed |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Brakes | Shimano MT200 hydraulic disc Type: Shimano Hydraulic Disc |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
|---|---|
| Spokes | 14 g stainless steel, black |
| Front Hub | Shimano 3.0 watt dynamo hub |
| Rear Hub | Shimano QC400, 32-hole, centerlock, 135x5 mm QR |
| Tires | Bontrager Girona Comp, sub tread puncture protection, Black Sidewall, Reflective stripe, 700x42C, made with recycled content |
| Disc Rotors | Shimano SM-RT30, CentreLock, 160 mm |

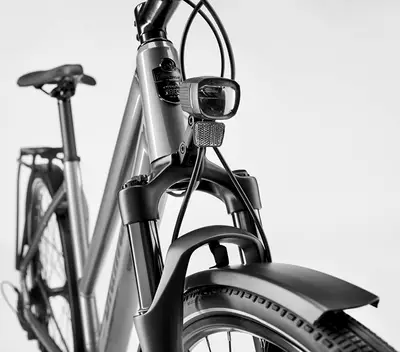

| Lights | Size: S, M, L, Spanninga Pimento Large, with stand light function; Size: S, M, L, Herrmans Nordic MR5, 100 lumen, LED, with stand light function |
|---|---|
| Stand | Pletscher Comp Flex 40 |
First added March 31
Last updated June 27
Not listed for 336 days
