Today’s Deals2023 Diamant

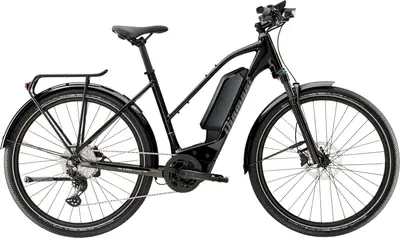

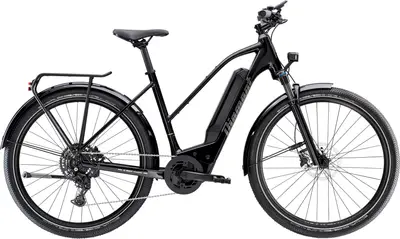

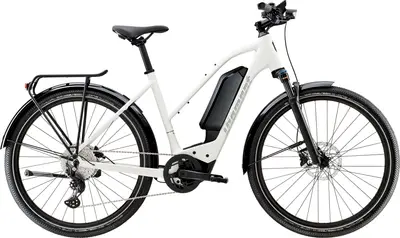

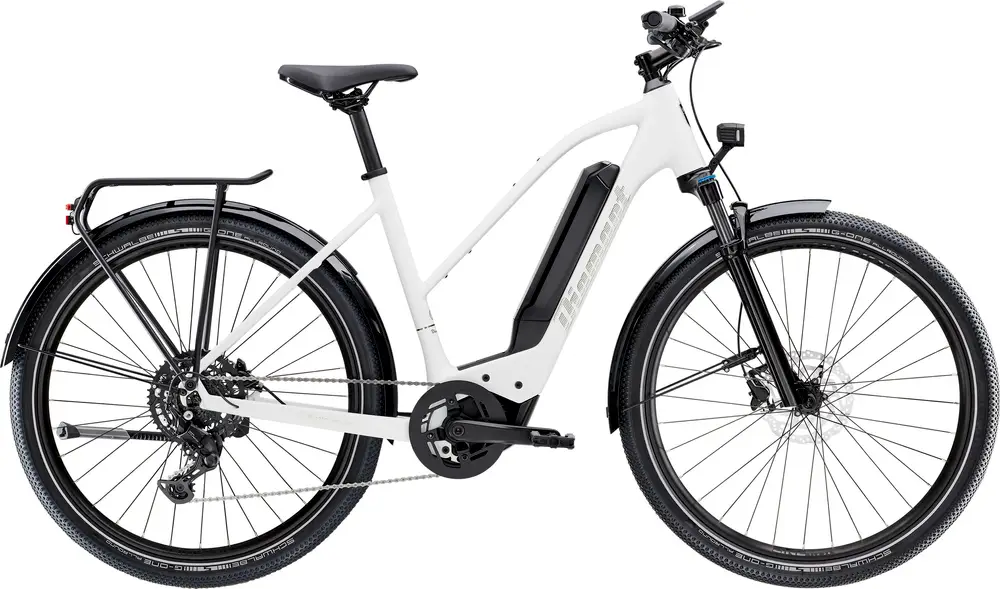

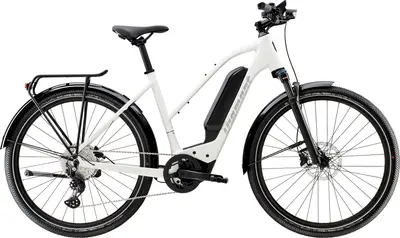

Zing Gen 2
A 29″ aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.
Manufacturer Price
€3,149($3,662)| Weight | 51.8 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 63mm |
| Fork | Suntour XCR |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 545Wh |
| Brakes | Shimano Hydraulic Disc |
5'0" – 5'6"
5'4" – 5'10"
5'8" – 6'2"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Frame Diamant Zing MY23 Aluminum, RD, Suspension fork Compatible, Bosch BES 3, external downtube battery BB Standard: Bosch, Press Fit Colors: Tiefschwarz; Weiss |
|---|---|
| Fork | SR Suntour XCR32, steel spring, adjustable spring preload, lockout, 100 mm quick release axle, 63 mm travel Travel: 63mm Spring Type: Coil |
| Bottom Bracket | Bosch, press-fit |
| Stem | Bontrager Comp, 31 8mm, Blendr compatible, 7 degree, 70mm length |
| Handlebar | Aluminum low riser, 31.8mm, 25mm rise, 11 degree curvature, 660mm width |
| Saddle | Selle Royal Vivo Moderate Ergo |
| Seatpost | Aluminum Bontrager, 31.6mm, 12mm offset, 330mm length Type: Rigid |
| Pedals | non-slip pedals with reflectors |
| Rear Derailleur | Shimano Deore M5130, GS, Shadow Plus |
|---|---|
| Crank | ProWheel, aluminum, 170 mm crank arm length |
| Shifters | Shimano Deore M5130, 10-speed |
| Cassette | Shimano LG400, 11-43, 10-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Brakes | Shimano MT200 Shimano EM300 hydraulic disc brake, Centerlock disc mount, 180 mm Type: Shimano Hydraulic Disc |
| Rims | Alex MD35, suitable for tubeless, 32 holes, 35 mm internal width, Presta valve |
|---|
| Motor | Bosch Performance Line CX, 25 km/h |
|---|---|
| Battery | Bosch Powerpack 545 / 725, Smart System |
| Display | Bosch Intuvia 100, Smart System |
| Lights | Front: Herrmans H-Black MR4-E, 120lumen, 40lux, LED, Rear: Spanninga SOLO for e-bike, LED |
|---|---|
| Racks | MIK compatible luggage rack made of aluminum |
First added March 28
Last updated May 4
Not listed for 755 days
