Today’s Deals2023 Diamant

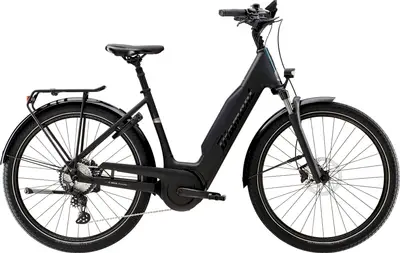

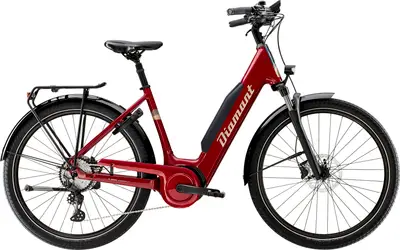

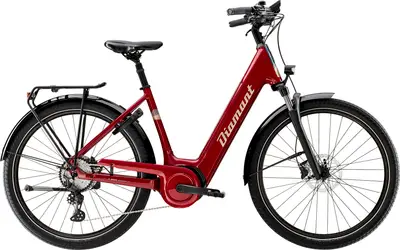

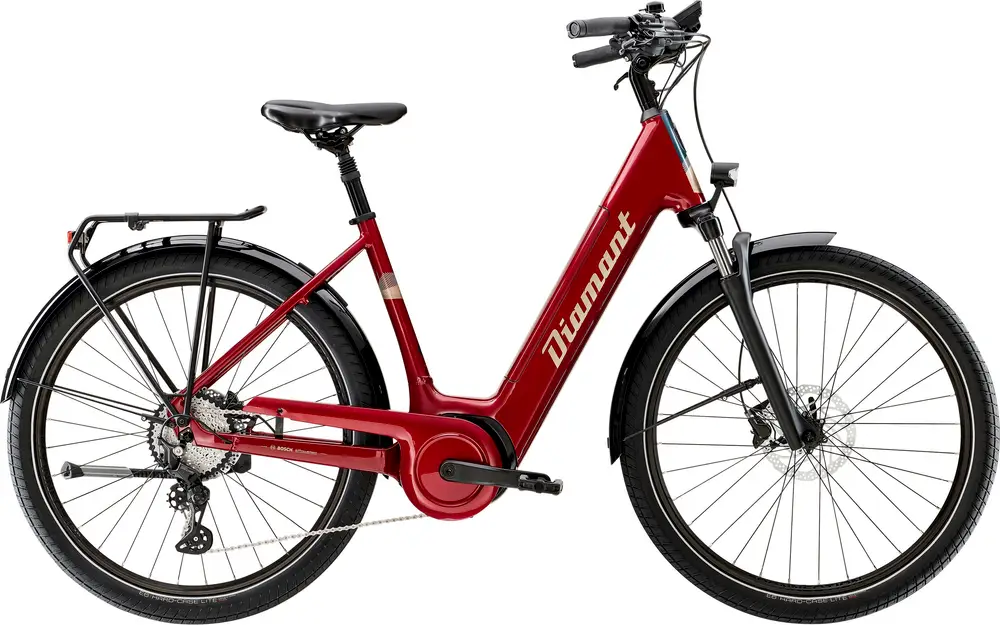

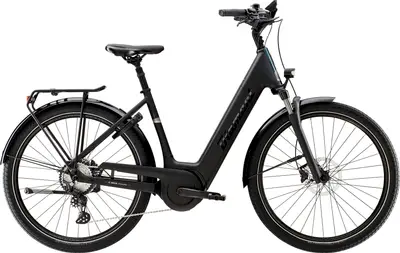

Mandara TIE
A 650b aluminum frame hybrid e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,399($3,955)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 60mm |
| Fork | Suntour NVX |
| Wheels | 650b Aluminum |
| Groupset | Deore |
| Motor | Bosch 250W 75Nm mid-drive |
| Battery | Bosch 545Wh |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Mandara model range
View Comparison4'11" – 5'5"
5'2" – 5'7"
5'4" – 5'10"
5'7" – 6'1"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Alpha Smooth Aluminium, Removable Integrated Battery, interne Zugführung, Motor Armor, Post Mount-Scheibenbremsaufnahme, 135 x 5 mm Schnellspannachse Colors: Tiefschwarz; Aventurinrot Metallic |
|---|---|
| Fork | SR Suntour NVX30, Spiralfeder, verstellbare Federvorspannung, 100-mm-Schnellspannachse, 60 mm Federweg Travel: 60mm Spring Type: Coil |
| Headset | Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Stem | Bontrager Aluminium, 31,8 mm, verstellbar, Blendr-kompatibel |
| Handlebar | Aluminium, 31,8-mm-Klemmung, 25 mm Rise, 630 mm Breite |
| Saddle | Selle Royal Nuvola |
| Seatpost | Aluminium, gefedert, 31,6 mm, 300 mm Länge Type: Rigid |
| Pedals | rutschfeste Pedale mit Reflektoren |
| Rear Derailleur | Shimano Deore M5130, GS, Shadow Plus |
|---|---|
| Crank | ProWheel, Aluminium, 170 mm Kurbelarmlänge |
| Shifters | Shimano Deore M5130, 10fach |
| Cassette | Shimano LG400, 11-43, 10fach |
| Chain | Shimano LG500 |
| Brakes | Hydraulische Scheibenbremse Shimano MT200 Shimano RT30, Centerlock-Scheibenaufnahme, 180 mm // Shimano EM300, Centerlock-Scheibenaufnahme, 180 mm Type: Shimano Hydraulic Disc |
| Rims | Bontrager Connection, Hohlkammerfelge, 32-Loch, 20 mm Innenweite, Presta-Ventil Shimano TX505, Center Lock-Scheibenaufnahme Shimano Alivio M4050,135 x 5 mm Schnellspannachse |
|---|
| Motor | Bosch Performance Line, 250 W, 75 Nm, 25 km/h |
|---|---|
| Battery | Bosch Powerpack 545 / 725, Smart System |
| Display | Bosch Intuvia 100, Smart System |
| Charger | Bosch Standardladegerät 4 A, 230 V, Smart System |
| Lights | Front: Herrmans H-Black MR4-E, 120lumen, 40lux, LED, Rear: Spanninga SOLO for e-bike, LED |
|---|---|
| Fenders | SKS Kunststoff, hinten // SKS Kunststoff, vorne |
| Racks | MIK-Gepäckträger aus Aluminium |
| Lock | Abus 4650XL |
| Stand | Pletscher Comp Flex 18 |
