Today’s Deals2023 Diamant

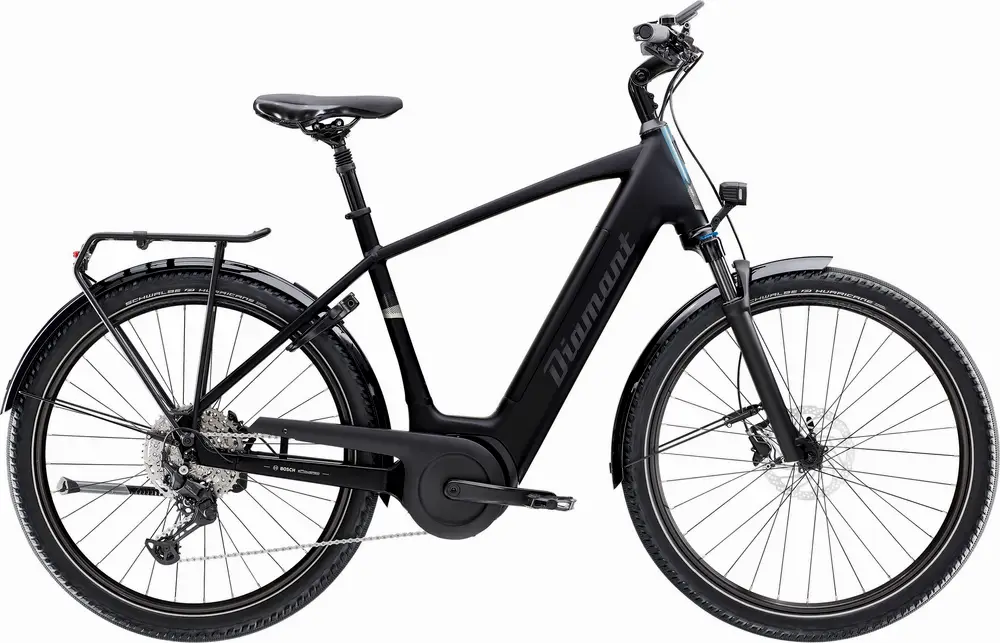

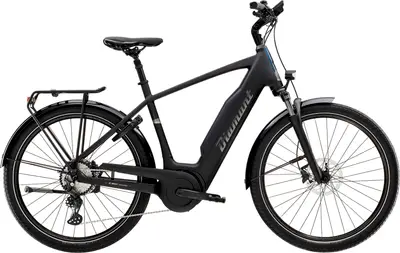

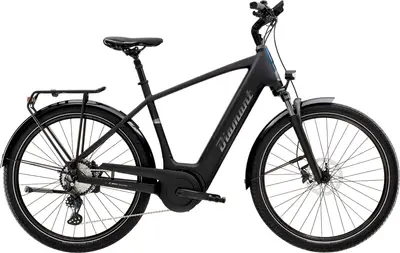

Mandara Gen 3
A 650b aluminum frame hybrid e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,349($3,897)| Weight | 62.4 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 60mm |
| Fork | Suntour NVX |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Bosch 250W 75Nm mid-drive |
| Battery | Bosch 545Wh |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Mandara model range
View Comparison5'4" – 5'10"
5'8" – 6'2"
6'0" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Alpha Smooth Aluminum, Removable Integrated Battery, internal cable routing, Motor Armor, post mount disc brake mount, 135 x 5 mm quick release axle Color: Tiefschwarz |
|---|---|
| Fork | SR Suntour NVX30, coil spring, adjustable spring preload, 100mm QR axle, 60mm travel Travel: 60mm Spring Type: Coil |
| Stem | Bontrager, aluminum, 31.8mm clamp diameter, adjustable rise, Blendr compatible, 105mm length |
| Handlebar | Aluminum low riser, 31.8mm, 25mm rise, 11 degree curvature, 690mm width |
| Saddle | Selle Royal Nuvola |
| Seatpost | Aluminum, spring-loaded, 31.6 mm, 300 mm length Type: Rigid |
| Pedals | non-slip pedals with reflectors |
| Rear Derailleur | Shimano Deore M5130, GS, Shadow Plus |
|---|---|
| Crank | ProWheel, aluminum, 175 mm crank arm length |
| Shifters | Shimano Deore M5130, 10-speed |
| Cassette | Shimano LG400, 11-43, 10-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Brakes | Shimano MT200 Shimano RT30 hydraulic disc brake, Centerlock disc mount, 180 mm Type: Shimano Hydraulic Disc |
| Rims | Bontrager Connection, hollow chamber rim, 32 holes, 20 mm inner width, Presta valve |
|---|
| Motor | Bosch Performance Line Cruise, 250 W, 75 Nm, 25 km/h |
|---|---|
| Battery | Bosch Powerpack 545 / 725, Smart System |
| Display | Bosch Intuvia 100, Smart System |
| Lights | Front: Herrmans H-Black MR4-E, 120lumen, 40lux, LED, Rear: Spanninga SOLO for e-bike, LED |
|---|---|
| Racks | MIK luggage rack made of aluminum |
