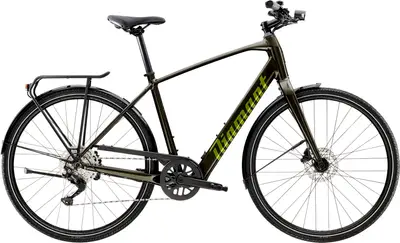

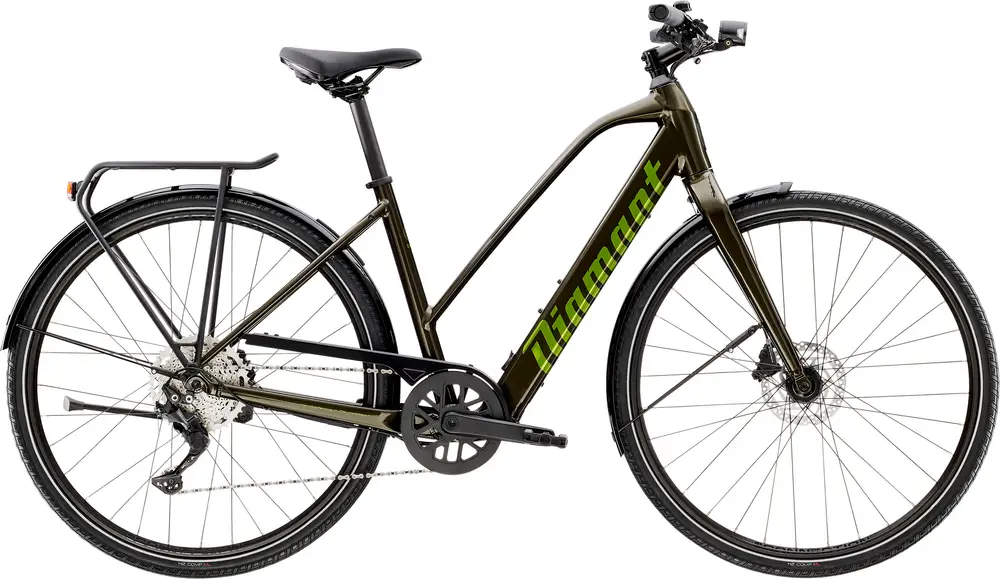

Today’s Deals2023 Diamant
365 Deluxe
A 650b aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€2,399($2,779)| Weight | 39.9 lbs |
|---|---|
| Frame | Aluminum |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | hub-drive |
| Battery | 250Wh |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full 365 model range
View Comparison5'0" – 5'6"
5'4" – 5'10"
5'8" – 6'2"
6'0" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc, kickstand mount, 144.5mm OLD hub motor spacing BB Standard: BSA, Threaded Color: Oxidgrün Metallic |
|---|---|
| Bottom Bracket | BSA, threaded |
| Stem | Bontrager Comp, 31 8mm, Blendr compatible, 7 degree, 90mm length |
| Handlebar | Aluminum low riser, 31.8mm, 25mm rise, 11 degree curvature, 660mm width |
| Saddle | Selle Royal Vivo Moderate Ergo |
| Seatpost | Aluminum Bontrager, 31.6mm, 12mm offset, 400mm length Type: Rigid |
| Pedals | non-slip pedals with reflectors |
| Rear Derailleur | Shimano Deore M5120, long cage |
|---|---|
| Crank | ProWheel Pro, aluminum, narrow-wide steel chainring (42 teeth), 175 mm crank arm length torque sensor, threaded, 122.5 mm axle length |
| Shifters | Shimano Deore M4100, 10-speed |
| Cassette | Shimano Deore M4100, 11-46 T. 10-speed |
| Chain | KMC E10S |
| Brakes | Shimano hydraulic disc brake, MT200 brake lever, UR300 brake caliper Type: Shimano Hydraulic Disc |
| Rims | Bontrager Connection, hollow chamber rim, 32 holes, 20 mm inner width, Presta valve |
|---|---|
| Front Hub | Formula DC-20, aluminum, 6-hole disc mount, 5 x 100 mm quick-release axle |
| Rear Hub | G2 hub motor |
| Motor | G2 hub motor |
|---|---|
| Battery | 250 Wh, in Unterrohr integriert, kompatibel mit Range Extender |
| Lights | Spanninga SOLO for e-bikes // Herrmans H-Black MR8, 180 lumens, 60 lux, LED, headlight |
|---|---|
| Racks | MIK-compatible rear luggage rack made of aluminum, max. load capacity 25 kg |
First added March 28
Last updated May 4
Not listed for 764 days
