Today’s Deals2023 Diamant
138

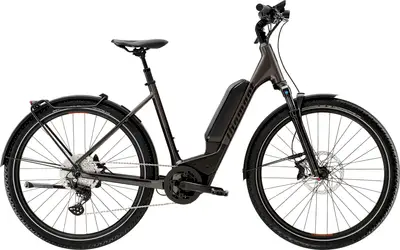

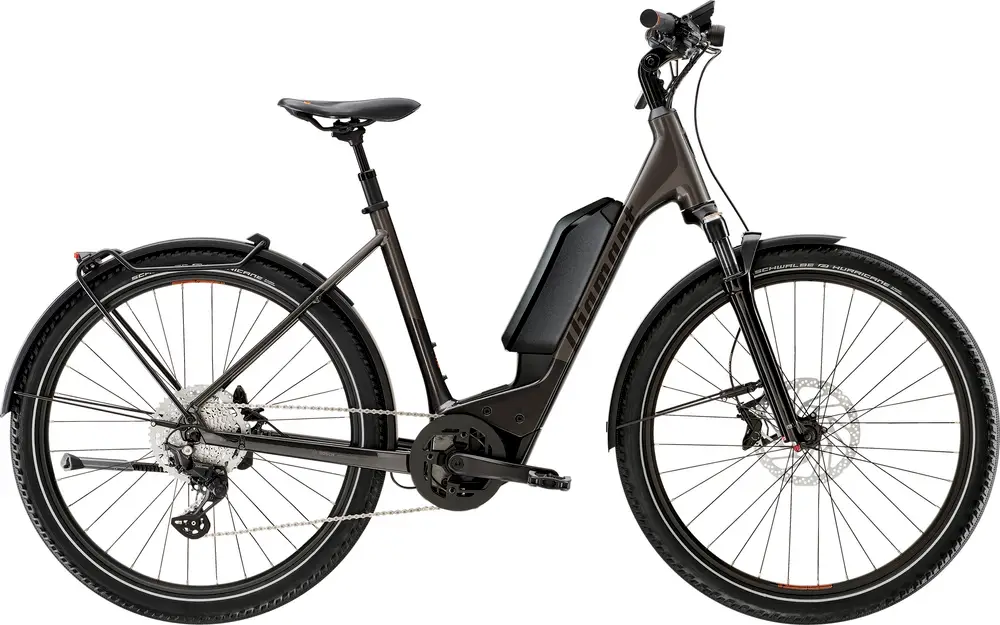

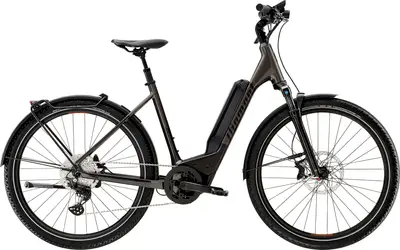

A 27.5″ aluminum frame hardtail crosscountry e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
€3,749($4,360)| Weight | 53.1 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 60mm |
| Fork | Suntour MOBIE |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 545Wh |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full 138 model range
View Comparison5'0" – 5'6"
5'4" – 5'10"
5'8" – 6'2"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5mm QR Color: Obsidianschwarz Metallic / Melanitgrau Metallic |
|---|---|
| Fork | SR Suntour Mobie 34, air spring, adjustable rebound and compression, tapered aluminum steerer, 15 x 100 mm thru axle, 60 mm travel Travel: 60mm Spring Type: Air |
| Stem | Bontrager, aluminum, 31.8mm clamp diameter, adjustable rise, Blendr compatible, 105mm length |
| Handlebar | Aluminum low riser, 31.8mm, 25mm rise, 11 degree curvature, 660mm width |
| Saddle | Brooks Cambium C67 Special Edition |
| Seatpost | Aluminum, spring-loaded, 31.6 mm, 300 mm length Type: Rigid |
| Pedals | Non-slip aluminum pedals with reflectors |
| Rear Derailleur | Shimano Deore M5130, GS, Shadow Plus |
|---|---|
| Crank | ProWheel, aluminum, 175 mm crank arm length |
| Shifters | Shimano Deore M5130, 10-speed |
| Cassette | Shimano LG600, 11-43, 10-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Brakes | Shimano MT401 / MT420 hydraulic disc brake, 180 mm disc diameter Shimano RT30, Center Lock, 203 mm Type: Shimano Hydraulic Disc |
| Rims | Alex MD35, suitable for tubeless, 32 holes, 35 mm internal width, Presta valve |
|---|
| Motor | Bosch Performance Line CX, 25 km/h |
|---|---|
| Battery | Bosch Powerpack 545 / 725, Smart System |
| Display | Bosch Intuvia 100, Smart System |
| Lights | Front: Supernova Mini 2 LED, Rear: Spanninga Pimento for e-bike, LED |
|---|---|
| Racks | SKS Infinity GT3 |
First added March 31
Last updated May 4
Not listed for 755 days
