Goldland Gloss

Shimano STEPS E8014 | 418Wh | Lithium-ion

Front: Shimano MT201/MT200 | 2 Pistons, Rear: Shimano MT201/MT200 | 2 Pistons

Formula CL-25 | Sealed | Centerlock | QR 9x100mm

Formula CL-2611 | Sealed | Centerlock | QR 10x135mm | SH

Front: V2 Comp | 17mm inner, Rear: V2 Comp | 17mm inner

Tranz-X Ajustable | B:25.4mm | L:110mm | 0-60°

The one-size-fits-all Griffin is Devinci’s family-friendly e-bike powered by Shimano’s intuitive STEPS system. Inspired by global bike share programs like those in New York, Montreal, and London, Griffins are hardwired to explore while using less energy in the process. A superior long-distance commuter or an everyday ally for weekend excursions with family and friends, these lightweight bikes are agile, manoeuvrable, and have disc brakes for determined stopping power. Additional features include internal cable routing for effortless transport and protection from elements; fenders and a rear rack to hold the rechargeable lithium-ion battery; and the appreciated ability to travel more than 150 kilometers in eco-mode.

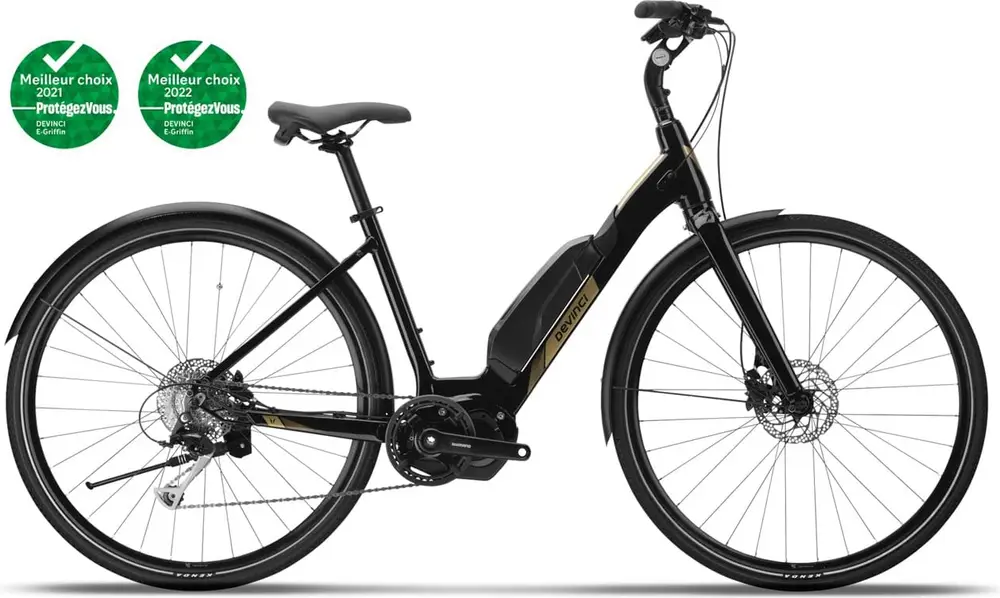

Devinci E-Griffin E6100 9S

One Size

A 700c aluminum frame comfort e-bike with mid-range components and shimano hydraulic disc brakes.

Weight	42.7 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	700c Aluminum
Drivetrain	1 × 9
Groupset	Alivio
Motor	Shimano 250W 60Nm mid-drive
Battery	Shimano 418Wh
Brakes	Shimano Hydraulic Disc

Frame	Aluminum Optimum S03 BB Standard: STEPS, Press Fit Color: Goldland Gloss
Fork	Aluminum Optimum S03
Bottom Bracket	STEPS, press-fit
Headset	FSA Orbit \| 1.5 \| Zero Stack
Stem	Tranz-X Ajustable \| B:25.4mm \| L:110mm \| 0-60°
Handlebar	Alloy City \| B:25.4mm \| R:30mm \| W:640mm
Saddle	Devinci
Seatpost	V2 Comp \| 30.9mm Type: Rigid
Pedals	Wellgo M085
Grips	Velo Ergo Comfort

Rear Derailleur	Shimano Alivio T4000 \| 9s
Crank	Shimano STEPS SM-CRE61 \| 38T
Shifters	Shimano Alivio M3100 \| 9s
Cassette	Shimano HG400 \| 9s \| 11-32T \| SH
Chain	Shimano E6070 \| 9s
Brakes	Front: Shimano MT201/MT200 \| 2 Pistons, Rear: Shimano MT201/MT200 \| 2 Pistons Type: Shimano Hydraulic Disc

Rims	Front: V2 Comp \| 17mm inner, Rear: V2 Comp \| 17mm inner
Spokes	Sapim Stainless 14G w/Nylok
Front Hub	Formula CL-25 \| Sealed \| Centerlock \| QR 9x100mm
Rear Hub	Formula CL-2611 \| Sealed \| Centerlock \| QR 10x135mm \| SH
Tires	Kenda Kwick Trax \| 700x38c
Disc Rotors	Shimano RT30 \| Centerlock \| 160mm

Motor	Shimano STEPS E6100 \| 250W \| 60Nm
Battery	Shimano STEPS E8014 \| 418Wh \| Lithium-ion
Display	Shimano STEPS E6100

2022 DevinciE-Griffin E6100 9S

2022 Devinci
E-Griffin E6100 9S
