Black Edition

Shimano STEPS E8035 | 504Wh | Lithium-ion

Front: Shimano MT520/MT501 | 4 Pistons, Rear: Shimano MT520/MT501 | 4 Pistons

Shimano M6100 | 12s | 10-51T | Microspline

RockShox 35 Silver TK Solo Air 140 | 0T | 44 Offset

Formula DC-711 | Sealed | 6bolts | TA 15x110mm

Formula EHL-148 | Sealed | 6bolts |TA 12x148mm | Microspline

Rockshox Deluxe Select R Debonair Trunnion | 185x47.5

Front: V2 Comp | 36mm inner | TR, Rear: V2 Comp | 36mm inner | TR

Front: Maxxis Minion DHF | 29x2.6wt | 3C MaxxTerra Exo+ TR, Rear: Maxxis Minion DHRII | 29x2.6WT | 3C MaxxTerra Exo+ TR

EP brings responsive handling and a wickedly fun feel to the rolling, rugged terrain it’s hardwired to explore. Rip quick, technical trails with a modern geometry that combines steep seat angles for climbing with slacker head angles for confidence inspiring cornering and control. And when it’s time to flip the switch into ebike assist, EP makes climbing fast and effortlessly fun thanks to its efficient, powerful Shimano e-engine that integrates seamlessly into the frame. EP features a Canadian made 6066-T6 Aluminum frame, 130mm trail-taming rear travel, and molded frame, motor, and battery protection. Whether it’s woodsy laps with friends or a week of trail time with the family, this lively bike lives for it.

Devinci EP Deore 12S

SM High

SM Low

MD High

MD Low

LG High

LG Low

XL High

XL Low

A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.

Weight	53.6 lbs
Frame	Aluminum
Suspension	Full, 130 / 140mm
Fork	RockShox 35 Silver
Shock	RockShox Deluxe Select
Wheels	29″ Aluminum
Drivetrain	1 × 12
Groupset	Deore
Motor	Shimano 250W 60Nm mid-drive
Battery	Shimano 504Wh
Brakes	Shimano Hydraulic Disc
Seatpost	Dropper

Frame	Aluminum Optimum G04 130mm BB Standard: STEPS, Press Fit Color: Black Edition
Fork	RockShox 35 Silver TK Solo Air 140 \| 0T \| 44 Offset Travel: 140mm Spring Type: Air
Shock	Rockshox Deluxe Select R Debonair Trunnion \| 185x47.5 Travel: 130mm
Bottom Bracket	STEPS, press-fit
Headset	FSA Orbit \| 1.5 \| Zero Stack
Stem	V2 Pro \| B:35mm \| L:50mm \| 0°
Handlebar	V2 Pro \| B:35mm \| R:15mm \| W:780mm
Saddle	SDG BELAIR 3.0
Seatpost	TranzX Dropper \| 31.6mm \| 1x Lever Type: Dropper
Grips	Devinci Performance \| w/lock-on

Rear Derailleur	Shimano Deore M6100 \| 12s
Crank	Shimano STEPS CRE70 \| 36T
Shifters	Shimano Deore M6100 \| 12s
Cassette	Shimano M6100 \| 12s \| 10-51T \| Microspline
Chain	Shimano Deore M6100 \| 12s
Chain Guide	E*thirteen TRS \| ISCG05
Brakes	Front: Shimano MT520/MT501 \| 4 Pistons, Rear: Shimano MT520/MT501 \| 4 Pistons Type: Shimano Hydraulic Disc

Rims	Front: V2 Comp \| 36mm inner \| TR, Rear: V2 Comp \| 36mm inner \| TR
Spokes	Sapim Stainless 14G w/Nylok
Front Hub	Formula DC-711 \| Sealed \| 6bolts \| TA 15x110mm
Rear Hub	Formula EHL-148 \| Sealed \| 6bolts \|TA 12x148mm \| Microspline
Tires	Front: Maxxis Minion DHF \| 29x2.6wt \| 3C MaxxTerra Exo+ TR, Rear: Maxxis Minion DHRII \| 29x2.6WT \| 3C MaxxTerra Exo+ TR
Disc Rotors	Shimano RT66 \| 203mm

Motor	Shimano STEPS E7000 \| 250W \| 60Nm
Battery	Shimano STEPS E8035 \| 504Wh \| Lithium-ion
Display	Shimano STEPS E7000

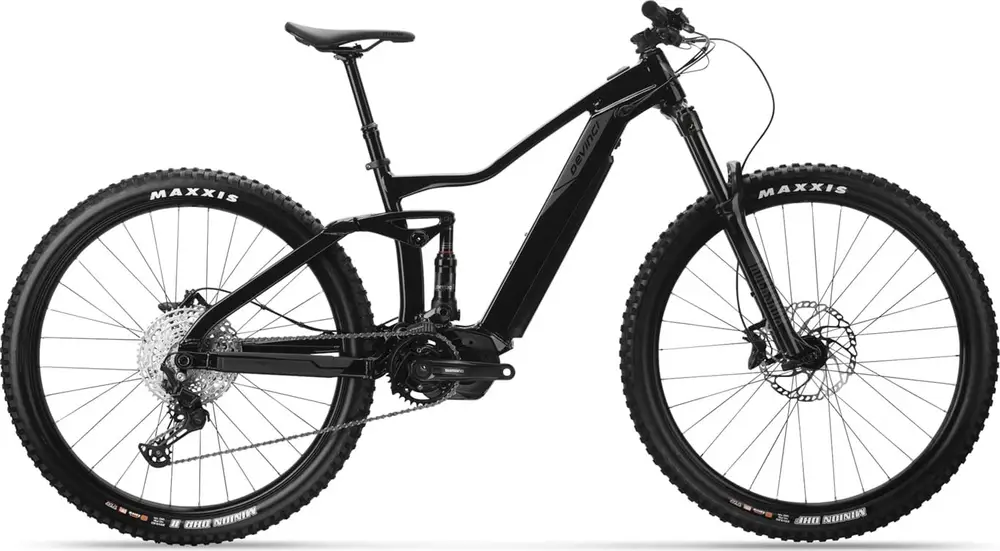

2021 DevinciEP Deore 12S

2021 Devinci
EP Deore 12S
